Removal & Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

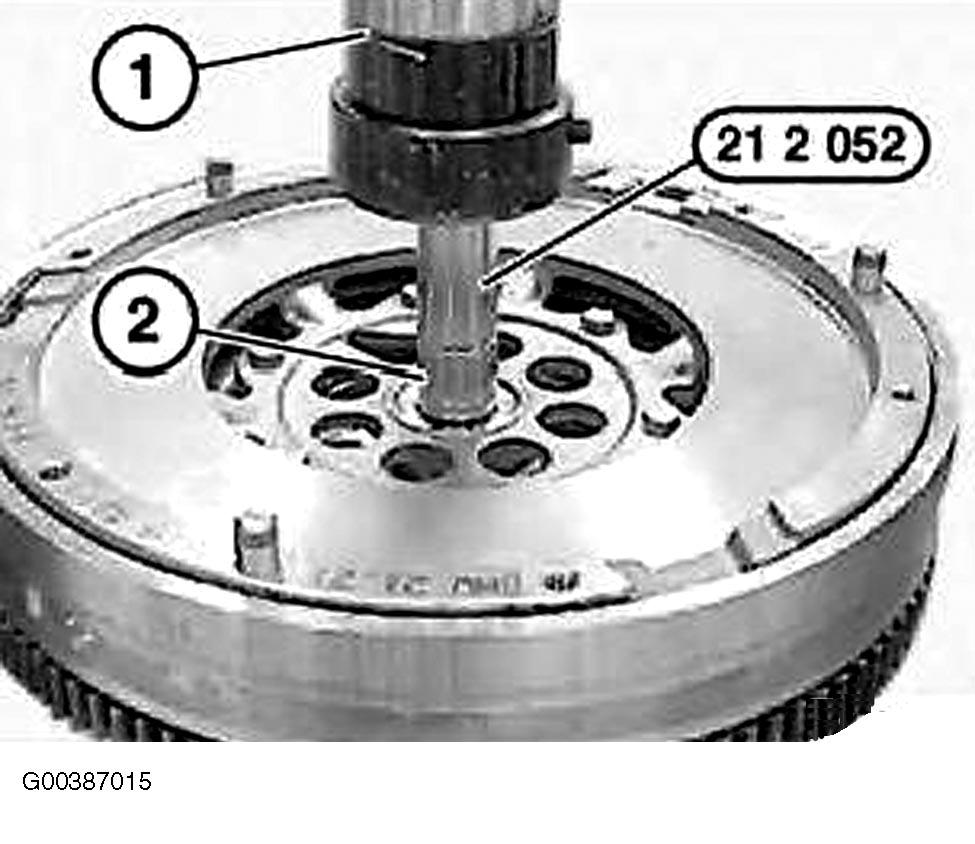

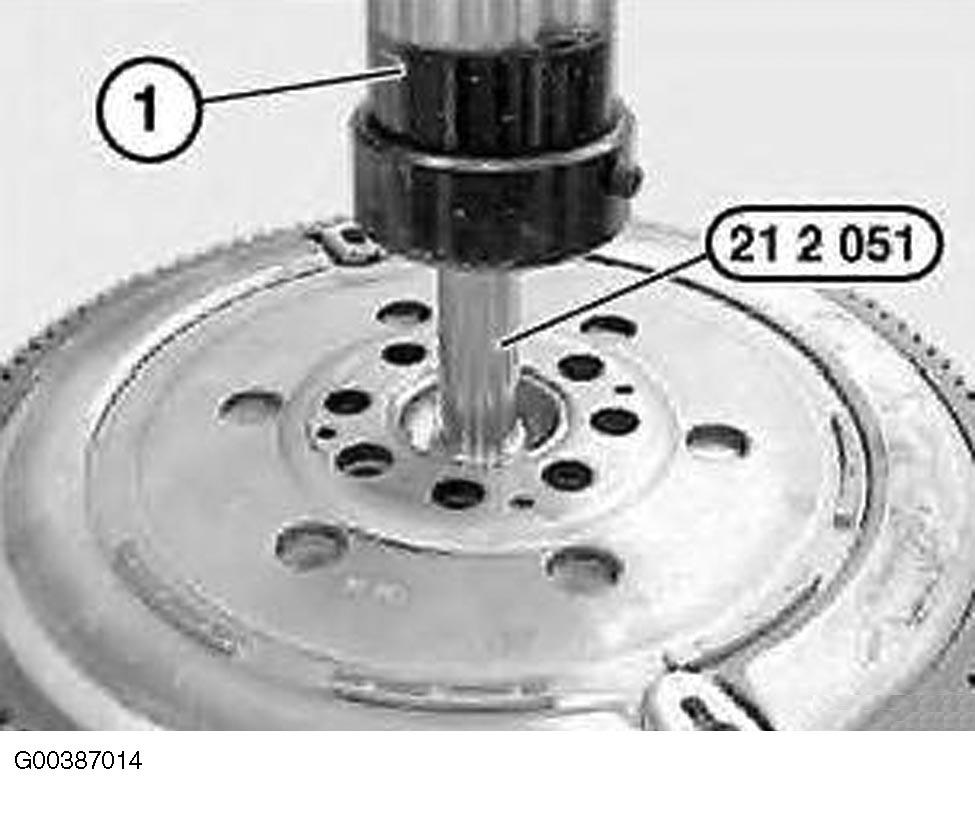

Remove flywheel. See ENGINE MECHANICAL article. Using hydraulic press (1) and special tool 212051, press out dual-mass flywheel downwards on engine side. See Fig 1 . Use care as there is a risk of damage: roller bearing must not be driven out. Push roller bearing (2) onto special tool 212052. Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side. See Fig 2 . Observe press-in instruction.
- Roller bearing must not be driven in.
- Roller bearing mounting force/travel monitored:
- Minimum 2000N 1 mm before end of pressing in.
- Maximum 15000N during entire press-in procedure.
