24 31 012 Replacing Torque Converter Shaft Seal (GA6L45R)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 1 450 . See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS -- 128I .
- 24 0 200
- 24 2 351
- 24 2 352
- 24 2 354
- 24 2 360
For the following special tools, see AUTOMATIC TRANSMISSION - SPECIAL TOOLS .
Necessary preliminary tasks:
- Remove automatic transmission . See 24 00 032 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA6L45R) .
IMPORTANT:
After completion of work, check transmission oil level.
See 00 11 237 CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6L45R)
. Use only approved transmission oil. Failure to comply with this instruction will result in serious damage to the transmission.
Secure transmission with special tool 24 0 200 to assembly stand 00 1 450 . See Fig 1.
Remove torque converter . See 24 40 013 REMOVING AND INSTALLING/REPLACING TORQUE CONVERTER (GA6L45R) .
Remove retaining ring (1) with a suitable tool (2).
Attach special tool 24 2 354 to drive shaft (1). See Fig 3.
Screw in special tool 24 2 351 until it is firmly connected with shaft seal. See Fig 4.
Screw in special tool 24 2 352 to remove shaft seal. See Fig 4.
Oil sealing lip on shaft seal.

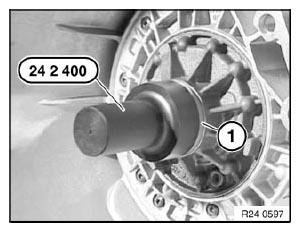

Drive in shaft seal (1) with special tool 24 2 360 as far as it will go.
