23 12 060 Replacing Radial Shaft Seal For Output Flange (GS6-17BG/DG)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 5 011 . See 00 5 010 UNIVERSAL PULLER .
- 23 0 020
- 23 1 210
- 24 0 110 . See 24 0 110 DRIFT .
- 33 1 150 . See 33 1 150 FIXTURE .
For the following special tools, refer to MANUAL TRANSMISSION - SPECIAL TOOLS .
IMPORTANT:
After completion of work, check transmission oil level
. See 00 11..... DRAINING/TOPPING UP GEAR OIL IN MANUAL TRANSMISSION . Use only approved transmission oil. Failure to comply with this instruction will result in serious damage to the transmission.
Necessary preliminary tasks:
- Remove underbody protection
- Remove exhaust system . See EXHAUST SYSTEM COMPLETE
- Remove front muffler (N45K)
- Remove heat shields
- Tie propeller shaft to one side. See 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT (CARDAN UNIVERSAL JOINT) COMPLETELY .

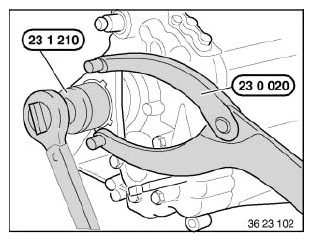

Brace output flange with special tool 23 0 020. See Fig 1.
Release collar nut with special tool 23 1 210. See Fig 1.
Tightening torque, see 23 21 1AZ in 23 21 TRANSMISSION SHAFTS .
Insert collar nut with Loctite 243 screw securing adhesive (sourcing reference: BMW Parts Service).

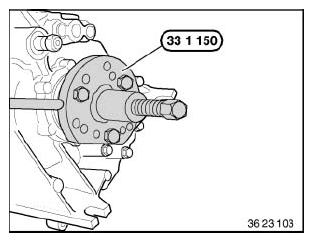

Detach output flange with special tool 33 1 150 from output shaft.

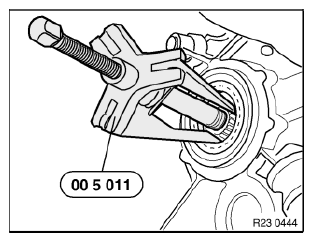

Withdraw radial shaft seal with special tool 00 5 011 . See Fig 3.
Installation:
Coat sealing lips of new radial seal with gear oil.
Drive in radial shaft seal with special tool 24 0 110 and plastic hammer until flush. See Fig 4.
