Removal & Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove transfer case. See TRANSFER CASE article. Shift transmission into 2nd gear. Drive out cylinder pin (2). See Fig 1. Screw in special tool (23 0 210) until it is firmly connected with radial seal (1). See Fig 2. Pullout radial seal with special tool (23 0 210). Coat sealing lips of radial seal and selector shaft with gear oil. Drive in radial seal with special tool (23 0 220). See Fig 3.

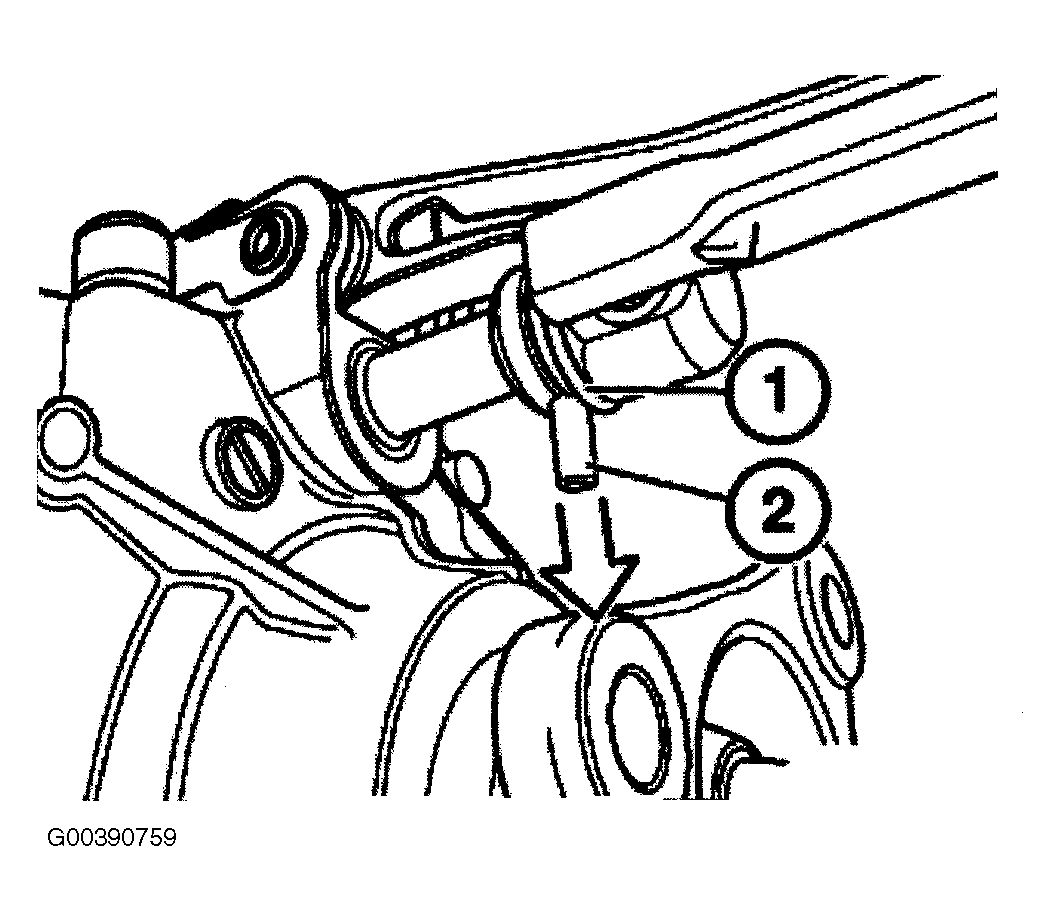

Fig 1: Driving Out Cylinder Pin

Courtesy of BMW OF NORTH AMERICA, INC.

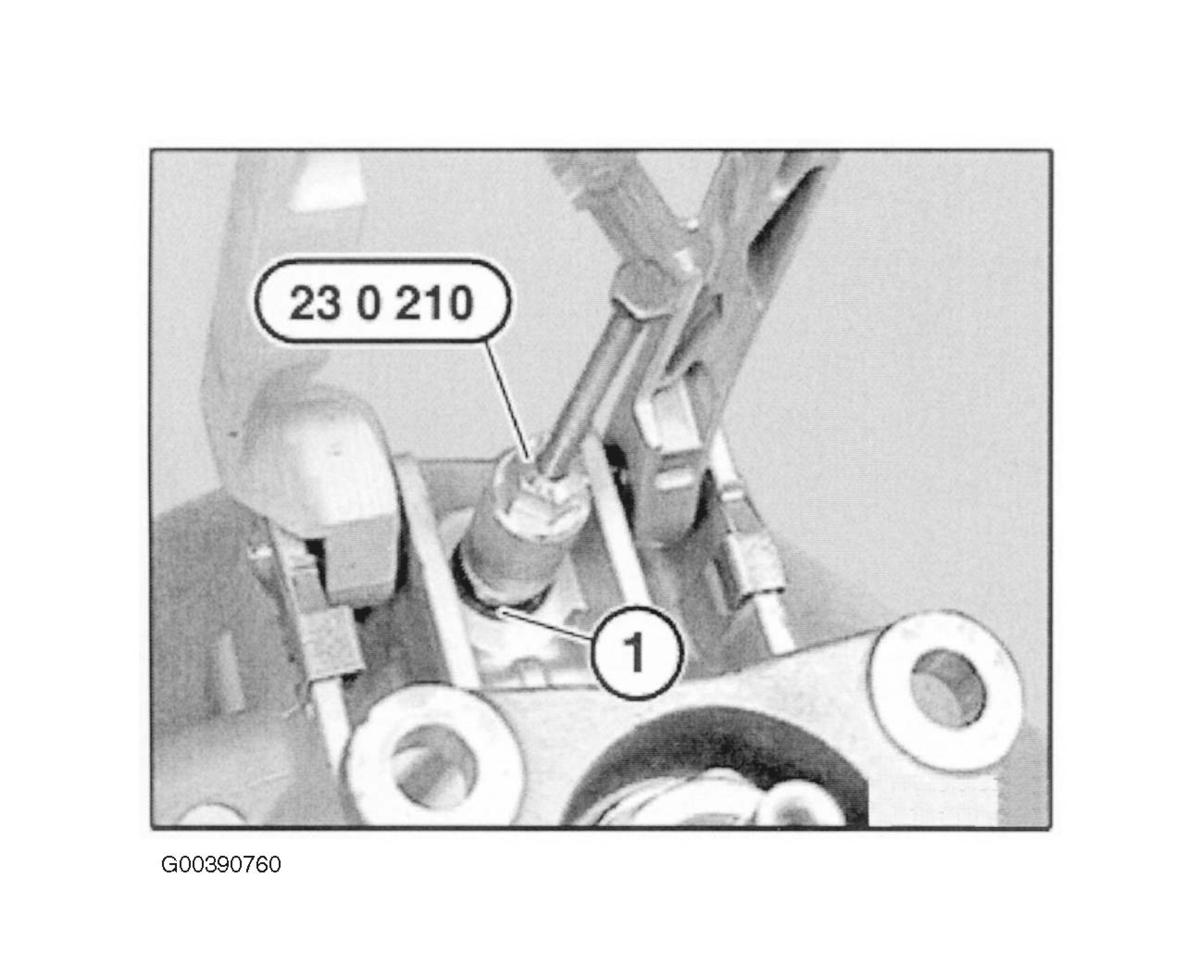

Fig 2: Screwing In Tool Until It Is Firmly Connected With Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.

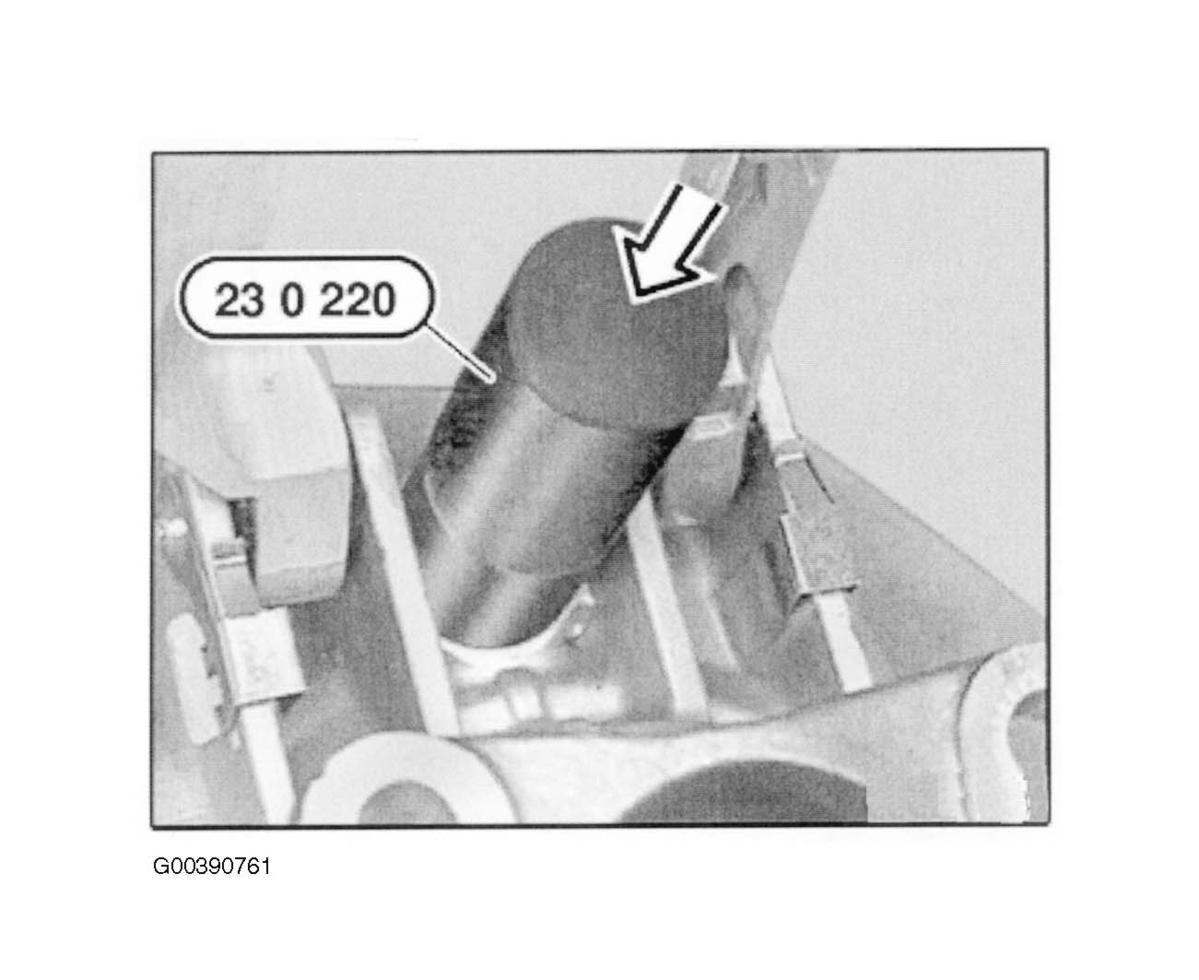

Fig 3: Driving In Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
