Removal & Installation (X3)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

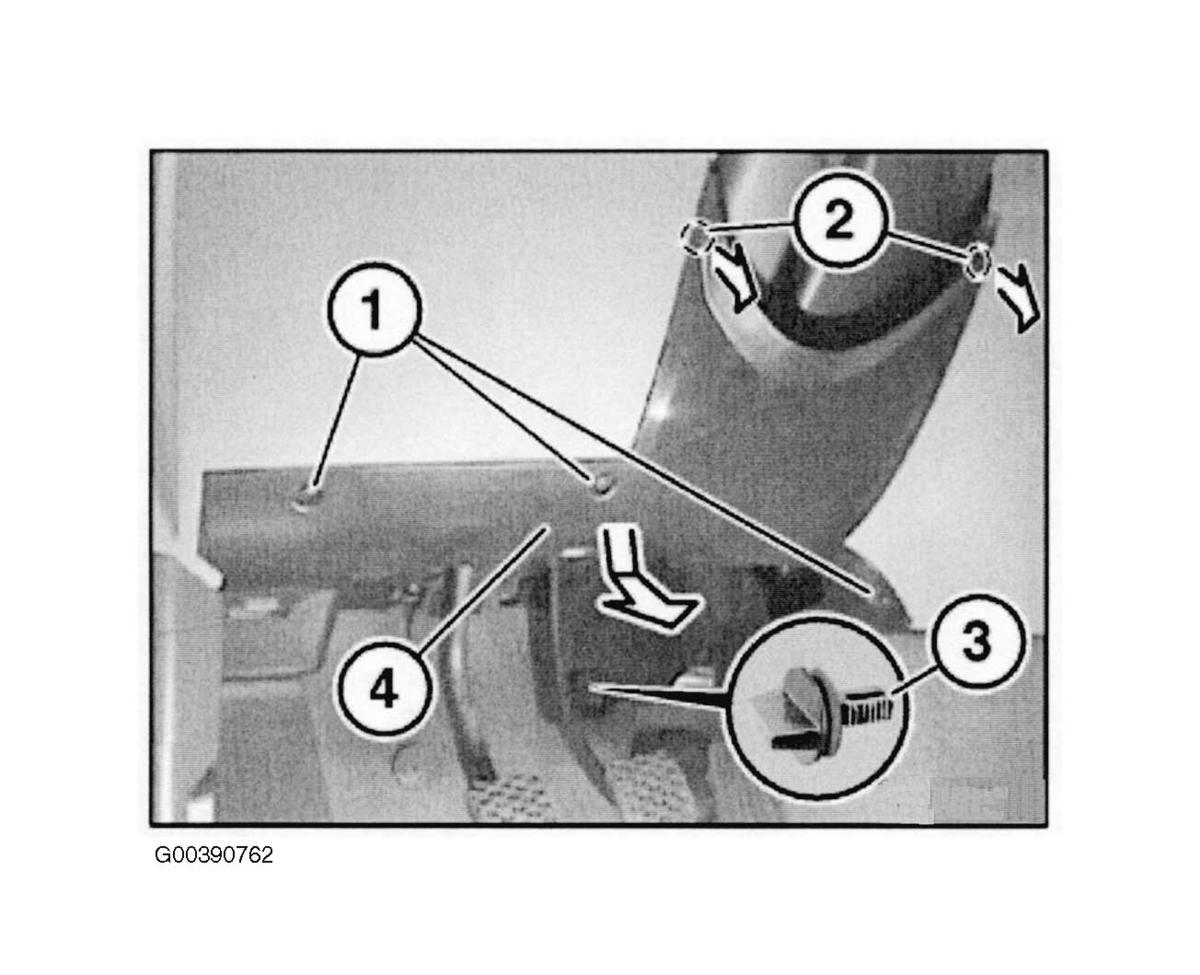

Release screws (1). Unclip trim for pedal assembly (4) at retaining points (2). Remove rotary clip (3) and pull back trim for pedal assembly (4) in direction of arrow. Disconnect associated plug connections and remove trim for pedal assembly (3). See Fig 1. When installing, note that locator tabs (1) of trim for pedal assembly (2) must not be damaged. Note location of gong (3) and footwell light (4). See Fig 2.
