Removal & Installation (6-Series)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

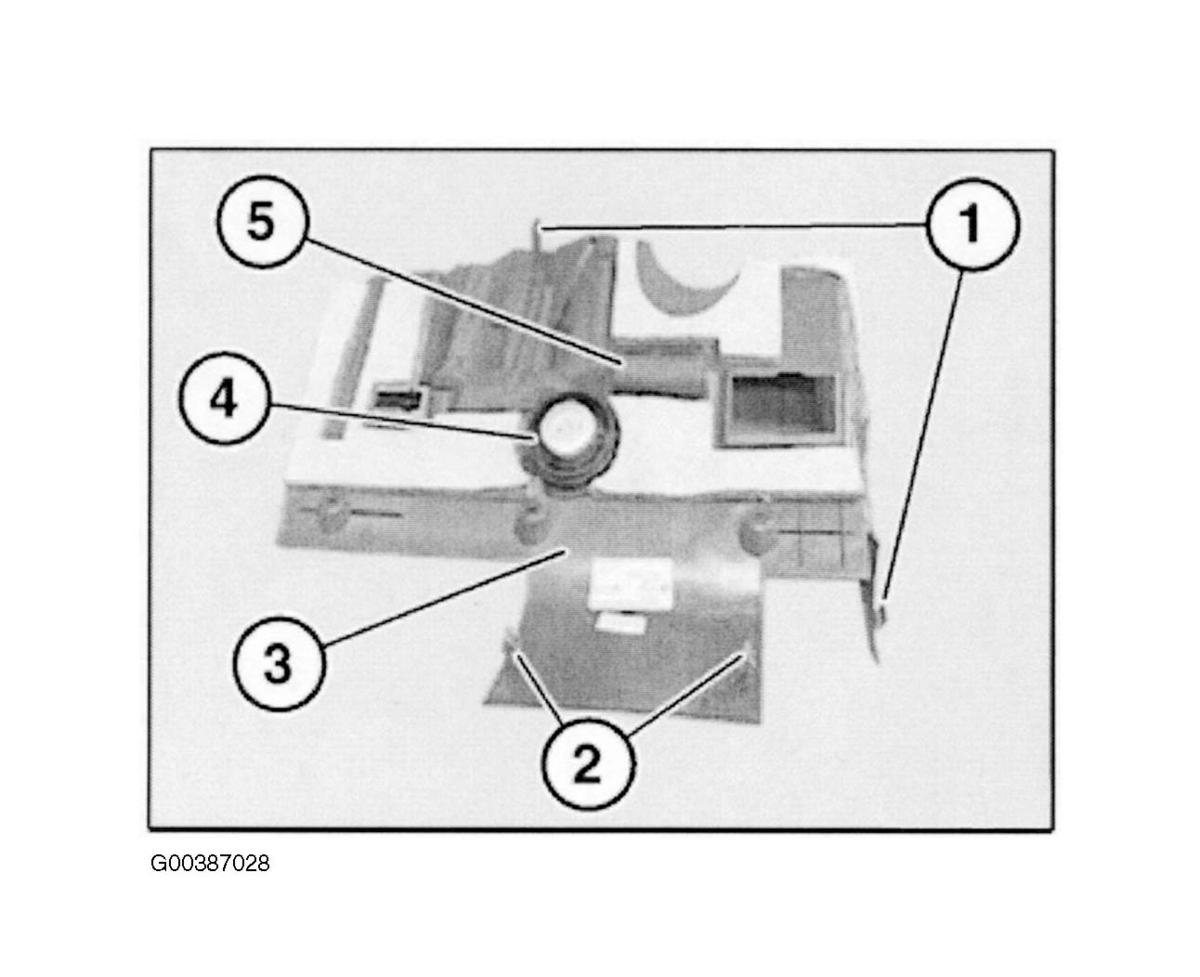

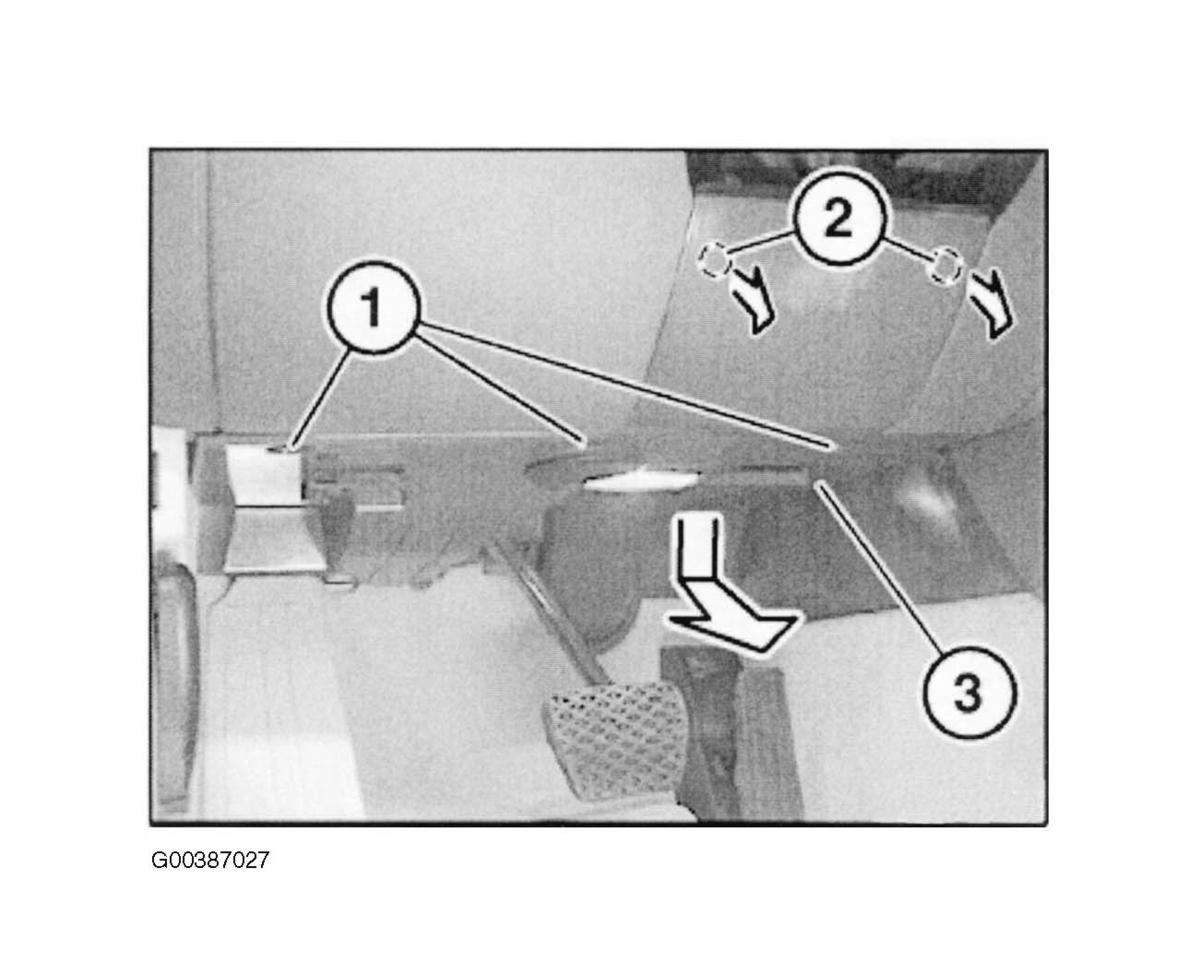

Release screws (1). Unclip trim for pedal assembly (3) at retaining points (2). Pull back panel for pedals (3) in direction of arrow. Disconnect associated plug connections and remove trim for pedal assembly (3). During installation, guides (1) and clips (2) of trim for pedal assembly (3) must not be damaged. See Fig 1. Note location of speaker for hands-free system (4) and footwell light (5). See Fig 2.
