Removal & Installation (6-Series)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

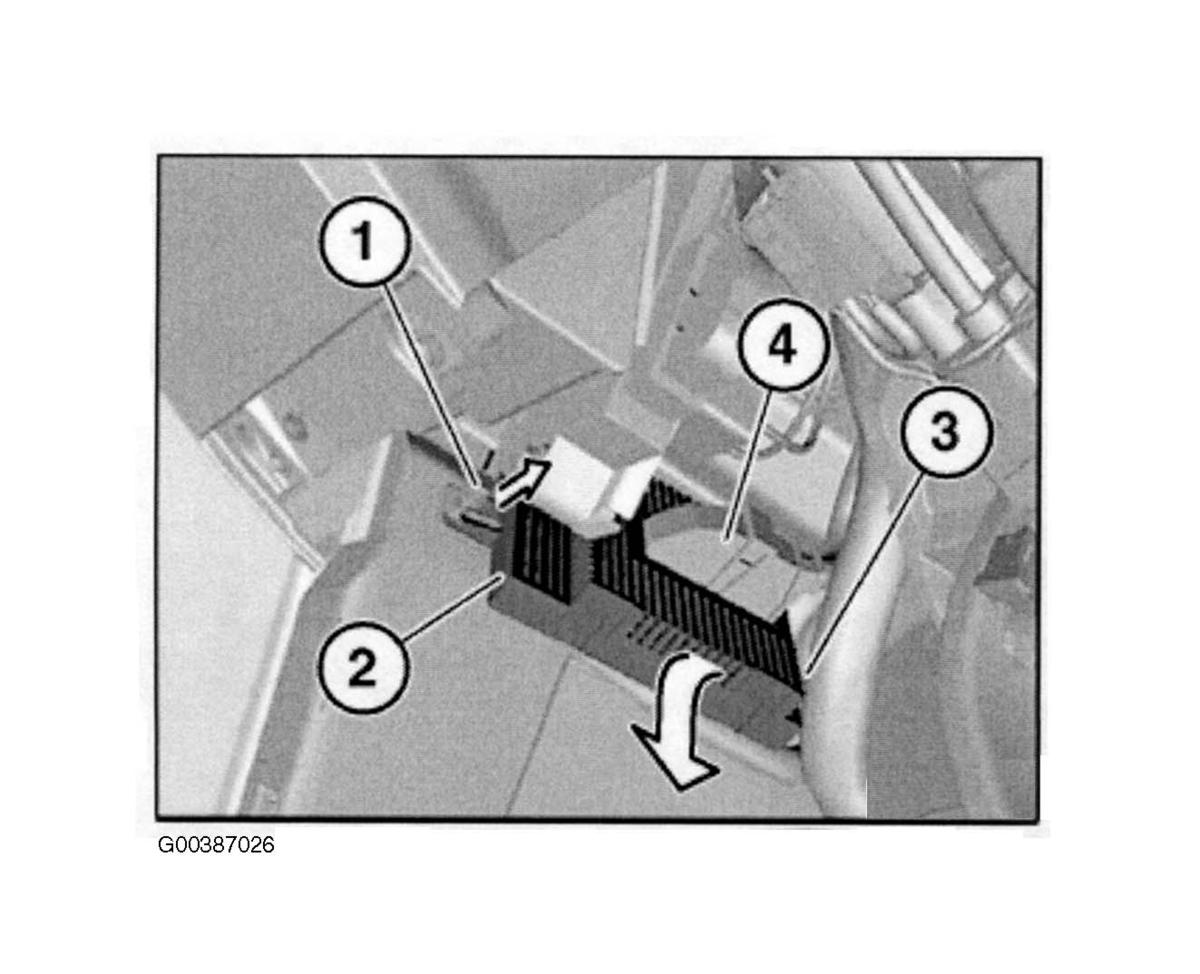

Remove PEDAL ASSEMBLY TRIM . Unfasten plug connection (4) and disconnect. Unlock catch (1) and feed out/remove light module (2) in direction of arrow. During installation, make sure light module (2) is correctly seated in mounting (3) and catch (1). See Fig 1. Reprogram light module with BMW DIS.
