Removal & Installation (X3 & X5 6-Cylinder)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

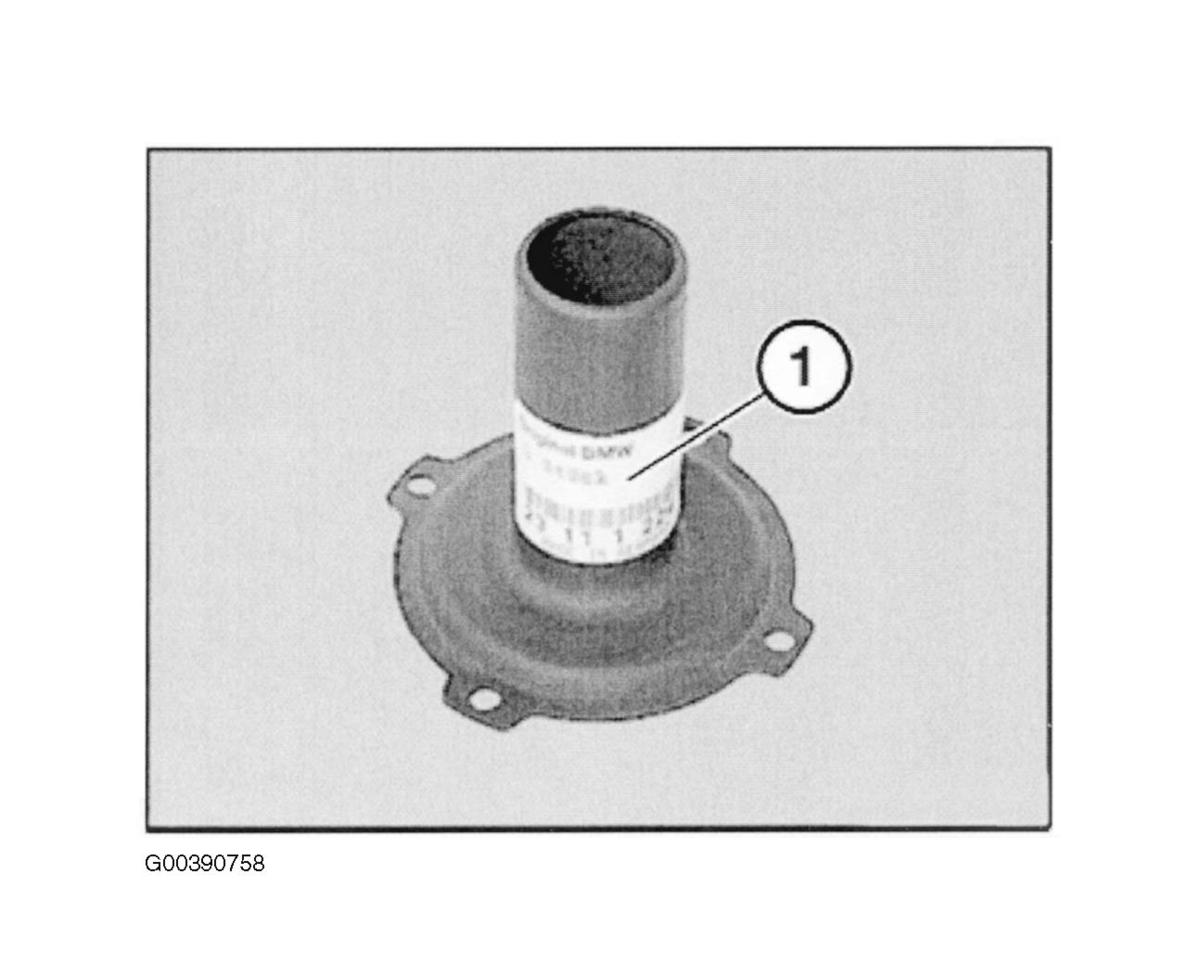

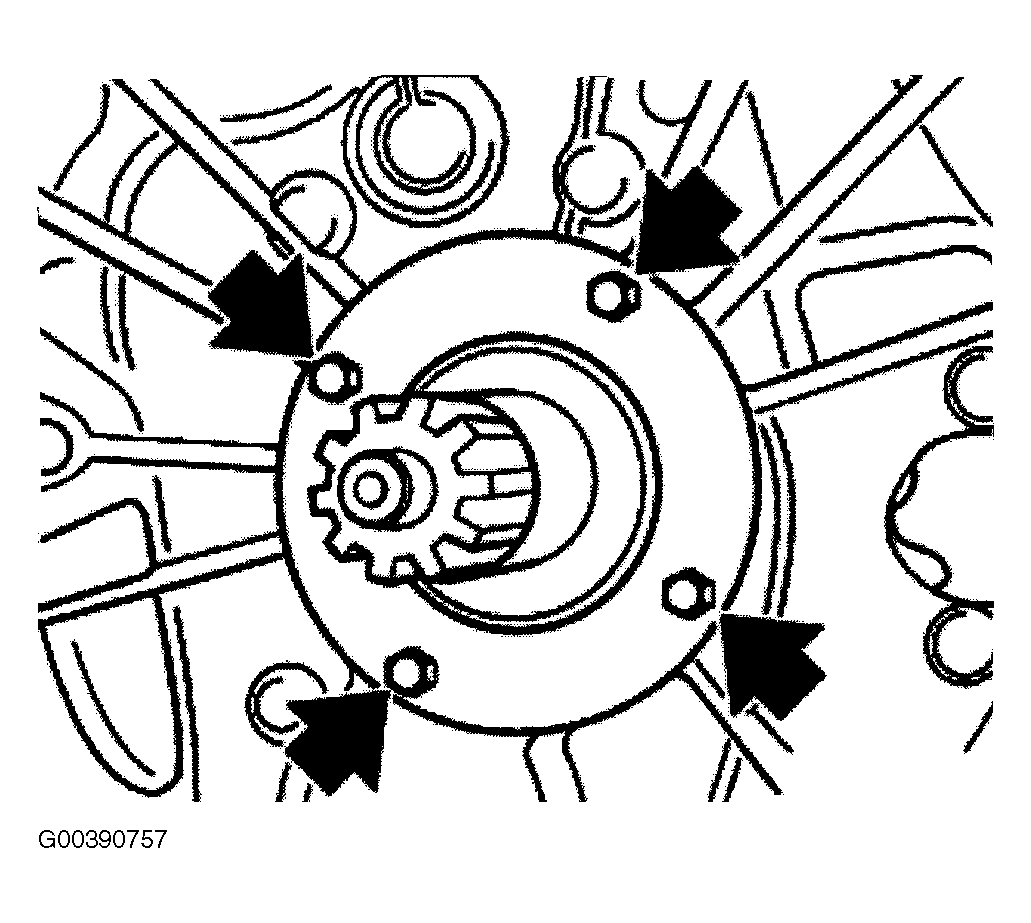

Remove clutch release bearing and release lever from tube. See CLUTCH RELEASE BEARING/LEVER . Unfasten bolts. See Fig 1. Remove guide tube (1). When installing, clean thread. Install screws with Loctite 243. Remove sticker (1) and adhesive with a suitable solvent. See Fig 2.
