Checking/Topping Off Fluid Level In Hydraulic System: S6S420G/SMG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

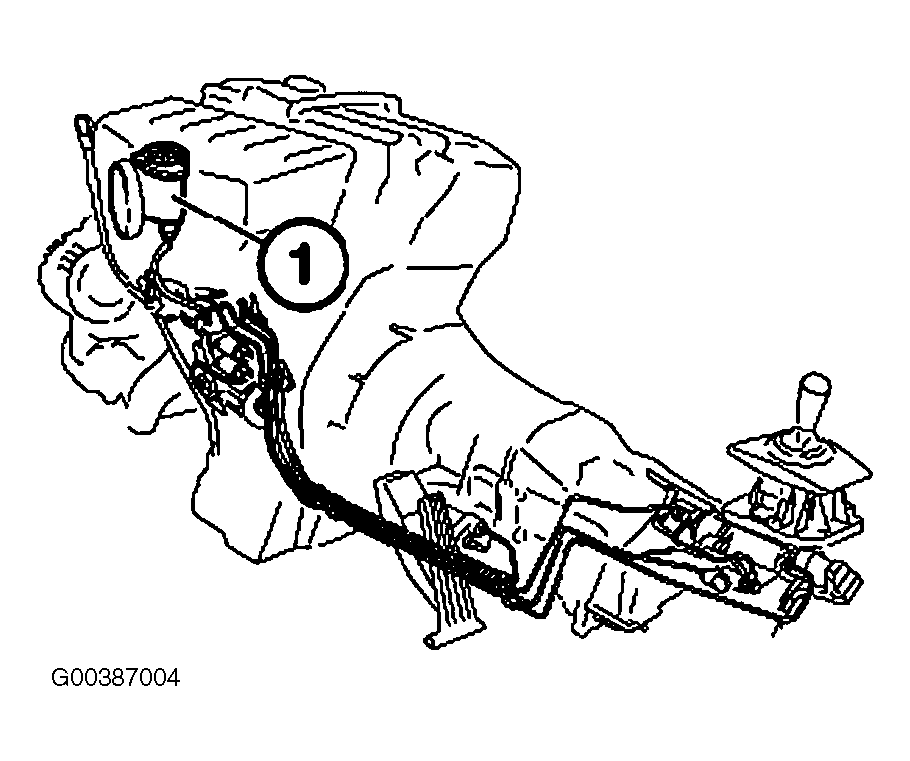

Turn on ignition. Press brake pedal. Move selector lever from position "0" to "R" or "0" to "E" until hydraulic pump is activated. Wait until hydraulic pump shuts down. Open expansion tank (1). See Fig 1. Fill expansion tank up to MAX marking (2) on dipstick (1). See Fig 2. Check with dipstick on cap by screwing in cap.
