Replacing Radial Seal For Output Flange (S5D 200G / 250G)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, 2005 BMW 530i, and 2005 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
After completion of work, check transmission fluid level. See CHECKING FLUID LEVEL
. Use only approved transmission fluid. See RECOMMENDED FLUID
. Failure to comply with this instruction will result in serious damage to the transmission.
Remove output flange. See Replacing Output Flange For Transmission (S5D 200G / 250G) .

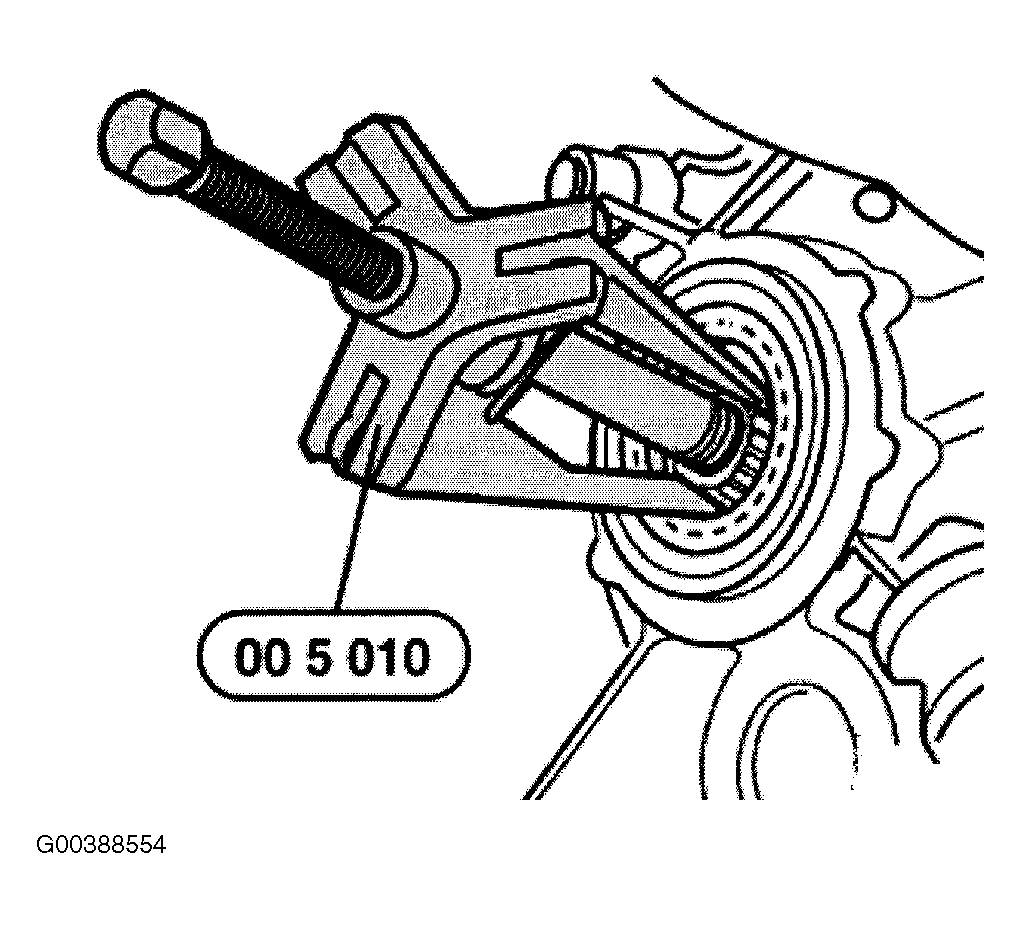

Remove radial seal with Special Tool (00 5 010). See Fig 1 .

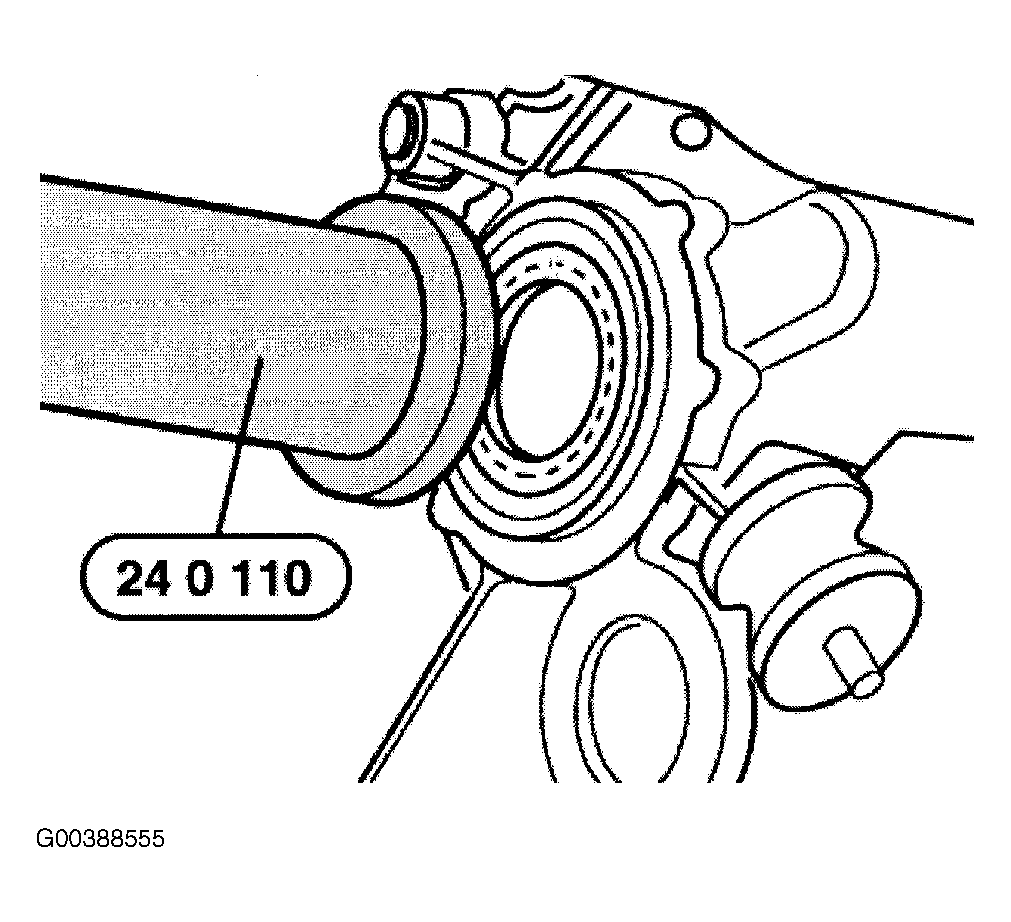

Installation: coat sealing lips of new radial seal with transmission oil. Drive in radial seal with Special Tool (24 0 110) and plastic hammer until flush. See Fig 2 .
