Replacing Clutch Actuator GS6S37BZ (SMG)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, 2005 BMW 530i, and 2005 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before working on hydraulic system: reduce pressure in hydraulic system by means of service function in DIS Tester. Disconnect hydraulic pump relay in electronics box. DO NOT reconnect relay for entire duration of repair work.
NOTE:
After completing work: check fluid level in hydraulic system by means of DIS Tester "Service Function". Perform "Teach in transmission" service function by means of DIS Tester.
NOTE:
Numbers in text refer to numbers in figures.
Remove assembly underside protection (E60 only).

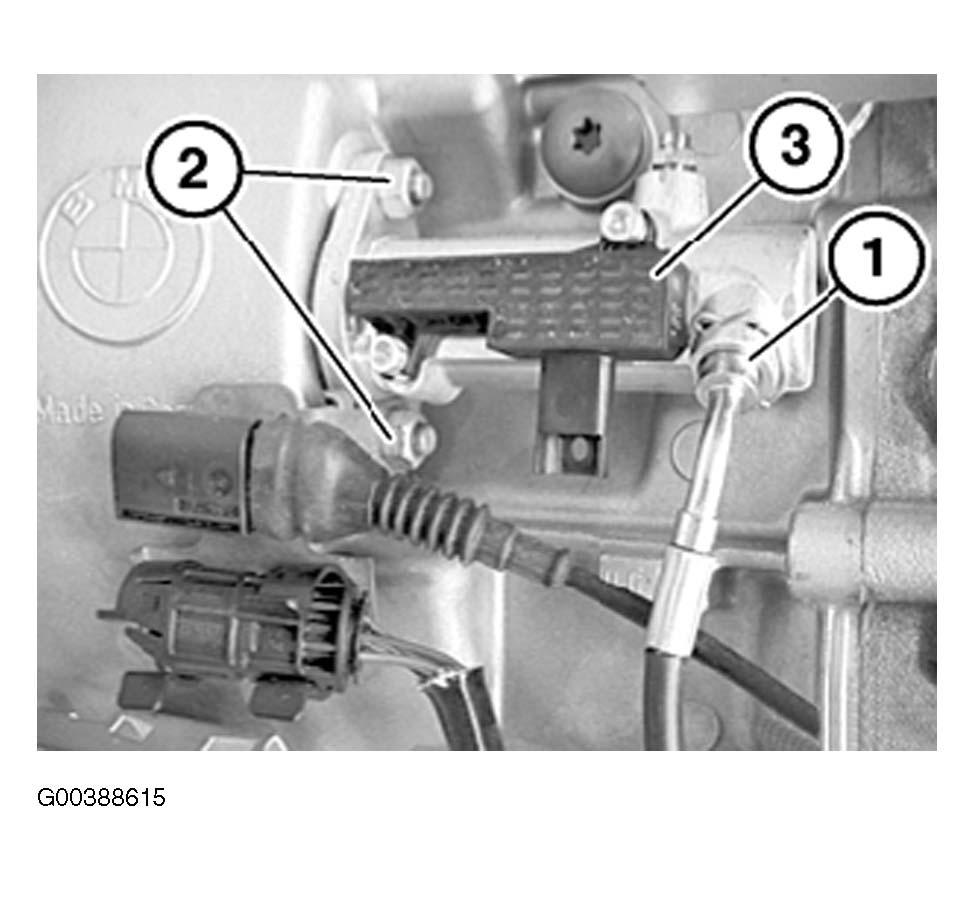

Unlock connector and remove. Unlock and disconnect line (1). See Fig 1 . Release nuts (2) and remove clutch actuator (3). Upon installation, replace sealing ring. Tighten nuts to specification. See TORQUE SPECIFICATIONS .
