Removing Hydraulic Pump Relay (SMG)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, 2005 BMW 530i, and 2005 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

Release screws (1). See Fig 1 . Lift off electronics box cover.

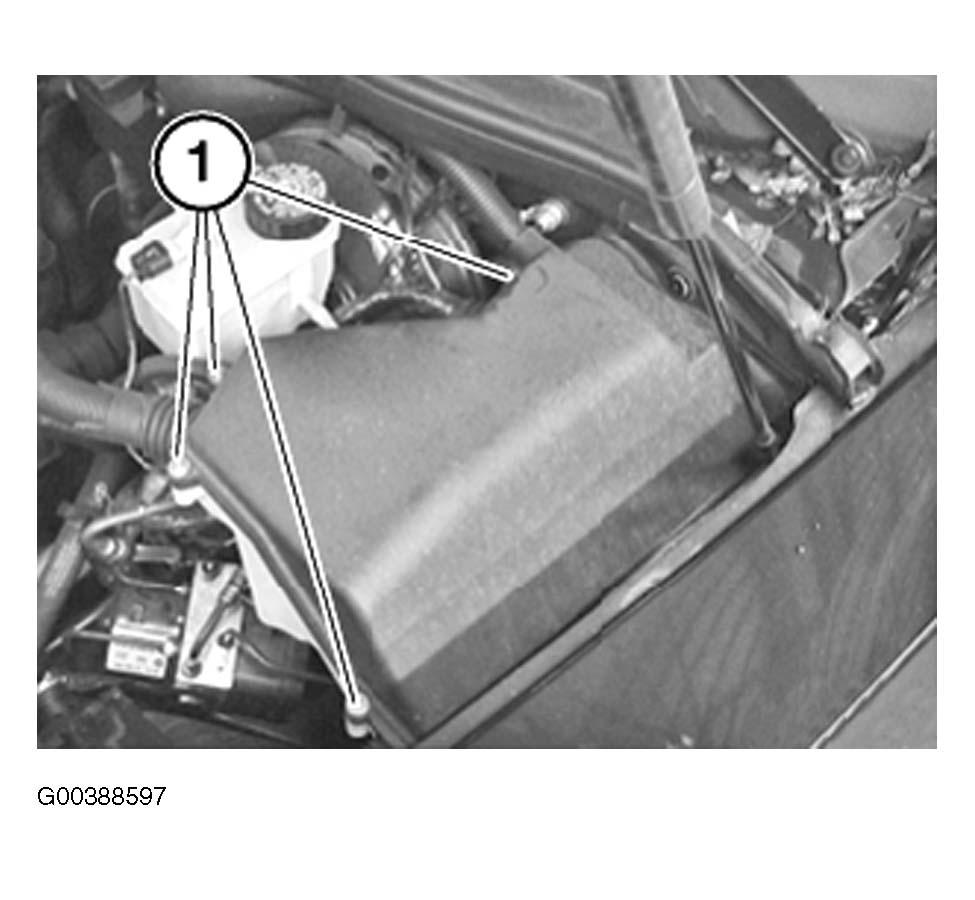

Fig 1: Removing Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach relay (1). See Fig 2 .

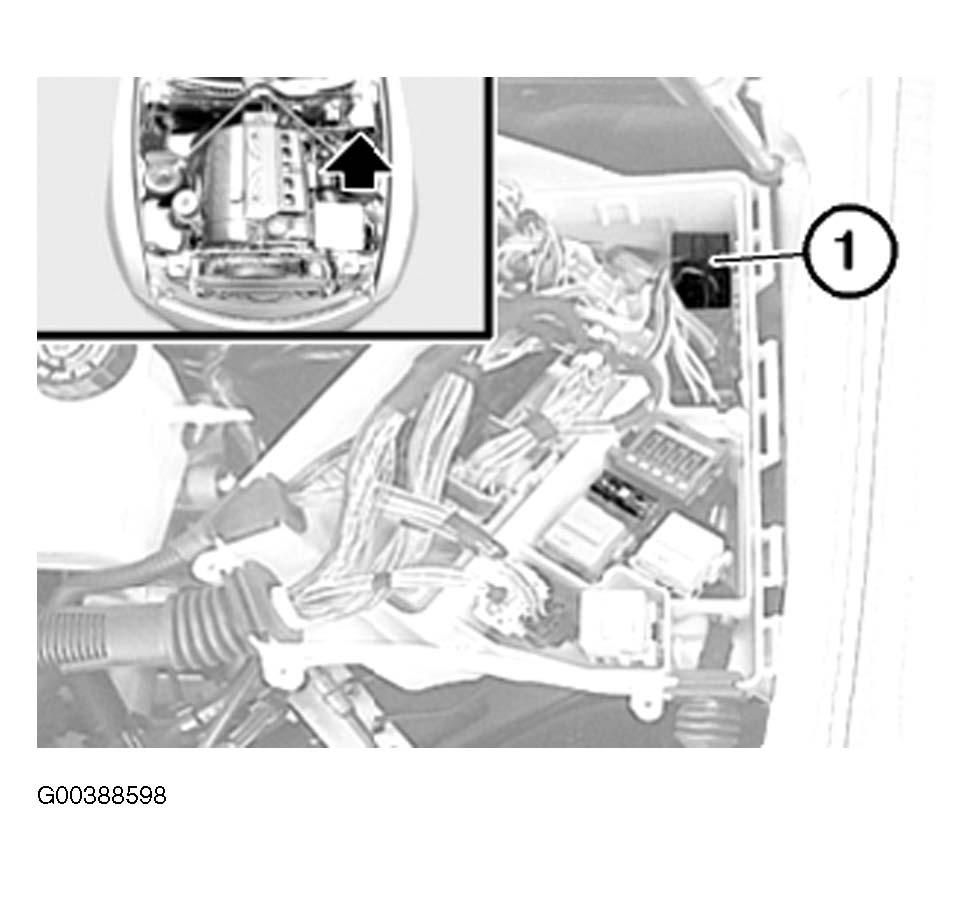

Fig 2: Locating Hydraulic Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.
