Replacing Selector Shaft Seal (GA6HP26Z/6HP32Z)

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2005 BMW 760i, 2005 BMW 760Li, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completion of work, check transmission fluid level. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z/6HP32Z)  . Use only the approved transmission fluid. See RECOMMENDED FLUID  . Failure to comply with this requirement will result in serious damage to the automatic transmission.

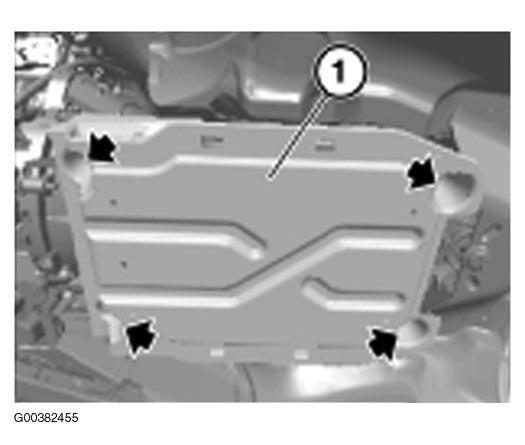

E65/N62 only: unfasten screws. Remove transmission underguard (1). See Figure . Remove left oxygen sensor. See REPLACING LEFT OXYGEN MONITOR SENSOR (N62).

E60/ E63/ E64, N62 only: remove rear underbody protection. Remove left oxygen sensor (N62 only). See REPLACING LEFT OXYGEN MONITOR SENSOR (N62).

E65 only: Unfasten nut. Remove cable (1). See Fig 1 . Upon installation: adjusting cable:

Fig 1: Removing Cable
G00374765Courtesy of BMW OF NORTH AMERICA, INC.

E60/ E63/ E64, E53 only: grip clamping sleeve (1) and slacken nut (2). See Fig 2 . Detach retainer (3) towards bottom using a screwdriver. Pull cable (4) out of holder. Upon installation, Tighten nut to specification. See TORQUE SPECIFICATIONS  . Adjust selector lever. See ADJUSTING SELECTOR LEVER  .

Fig 2: Detaching Selector Lever Cable
G00374746Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw. Take off holder (1). See Fig 3 . Illustration shows E65. Upon installation, tighten screw to specification. See TORQUE SPECIFICATIONS  .

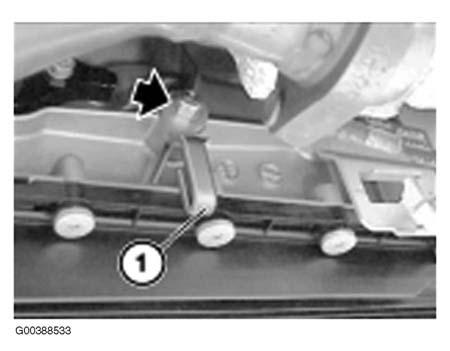

Fig 3: Taking Off Holder
G00388533Courtesy of BMW OF NORTH AMERICA, INC.

Screw in Special Tool (24 5 361) until it is firmly connected with shaft seal. See Fig 4 .

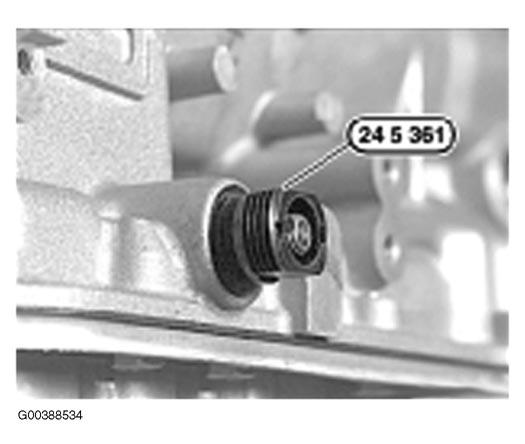

Fig 4: Screwing In Special Tool
G00388534Courtesy of BMW OF NORTH AMERICA, INC.

Screw Special Tool (24 5 362) onto Special Tool (24 5 361) and tighten down. See Fig 5 . This pulls the shaft seal out of the transmission housing.

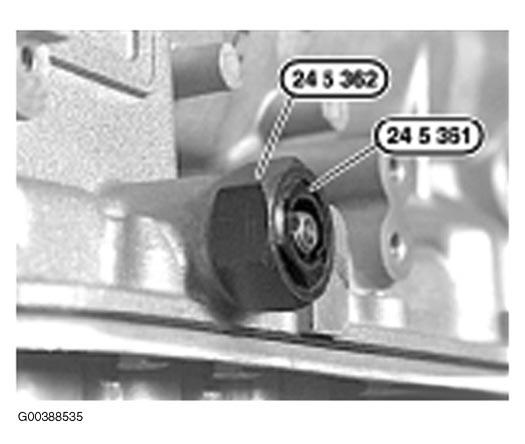

Fig 5: Pulling Shaft Seal Out Of Transmission Housing
G00388535Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal (1). Screw in shaft seal (1) with Special Tools (24 5 366) and (24 5 364) as far as it will go. See Fig 6 .

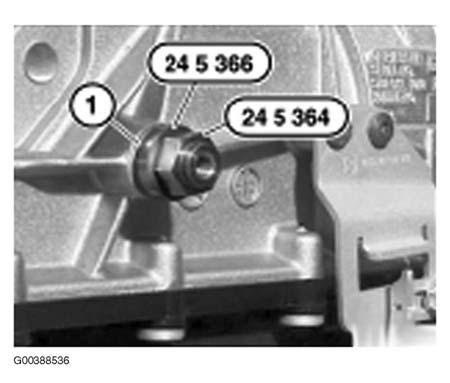

Fig 6: Screwing In Shaft Seal
G00388536Courtesy of BMW OF NORTH AMERICA, INC.
