Replacing Sealing Sleeve For Transmission Housing (GA6HP26Z)

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2005 BMW 760i, 2005 BMW 760Li, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After completion of work, check transmission fluid level. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z/6HP32Z) . Use only the approved transmission fluid. See RECOMMENDED FLUID . Failure to comply with this requirement will result in serious damage to the automatic transmission.

Remove exhaust system at manifold and lower. See REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62).

Remove heat shields (1) and (2). See Figure .

Support transmission with hydraulic jack.

Release screws (1) and nuts (2) and remove transmission cross-member. See Figure .

CAUTION: DO NOT support transmission on transmission fluid sump. Risk of damage.

Remove transmission sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION SUMP (GA6HP26Z/6HP32Z) .

Unlock and disconnect plug (1) by turning. See Fig 1 .

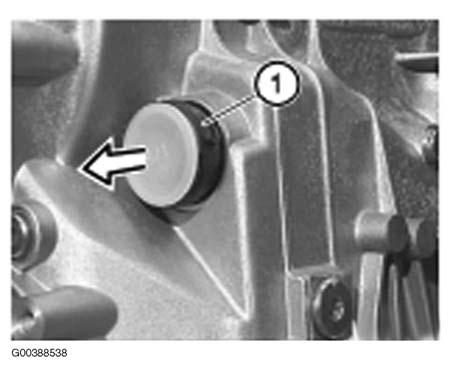

Fig 1: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Insert Special Tool (24 2 390) in sealing sleeve (1). See Fig 2 .

Fig 2: Inserting Special Tool In Seating Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock sealing sleeve with slide (1). See Fig 3 .

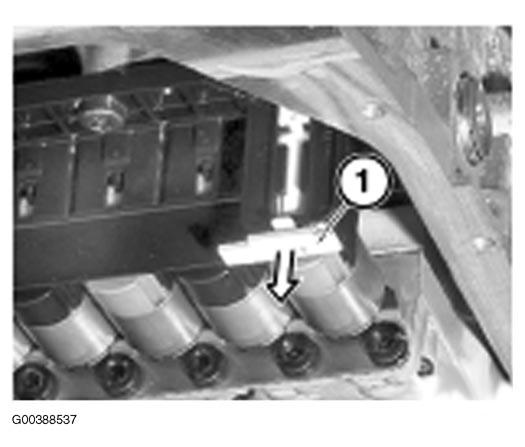

Fig 3: Unlocking Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of sealing sleeve. Pull out sealing sleeve (1). See Fig 4 . Upon installation: screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve. Lug on sealing sleeve must not be damaged.

Fig 4: Pulling Out Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
