Replacing A Pressure Control Valve (Electronic Pressure Actuator) GA6HP26Z
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2005 BMW 760i, 2005 BMW 760Li, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
After completion of work, perform "Mechatronic adjustment" service function using DIS Tester. Check transmission fluid level. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (GA6HP26Z/6HP32Z)
. Use only the approved transmission fluid. See RECOMMENDED FLUID
. Failure to comply with this requirement will result in serious damage to the automatic transmission.
CAUTION:
Risk of damage: Electronics module can be destroyed by electrostatic charge. Lay mechatronics on Special Tool (12 7 192) (antistatic mat) and ground. Failure to comply with this instruction will result in serious damage to electronic components.
Remove mechatronics. See REPLACING MECHATRONICS (GA6HP26Z/6HP32Z) .
NOTE:

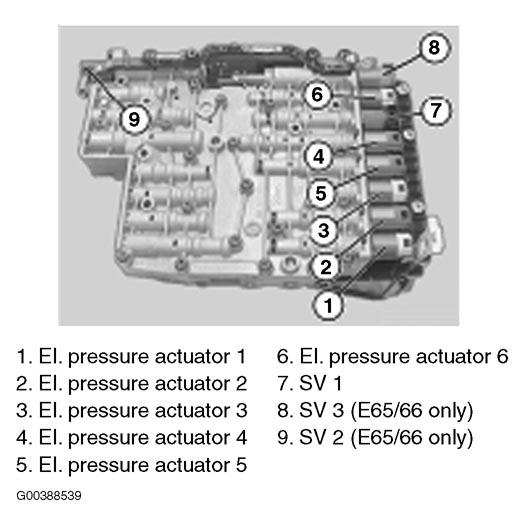

Tasks are identical for electronic pressure control valves. See Fig 1
.

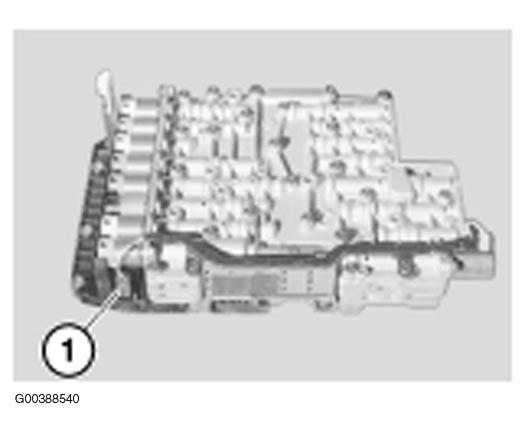

Unlock plug (1) and remove. See Fig 2 .

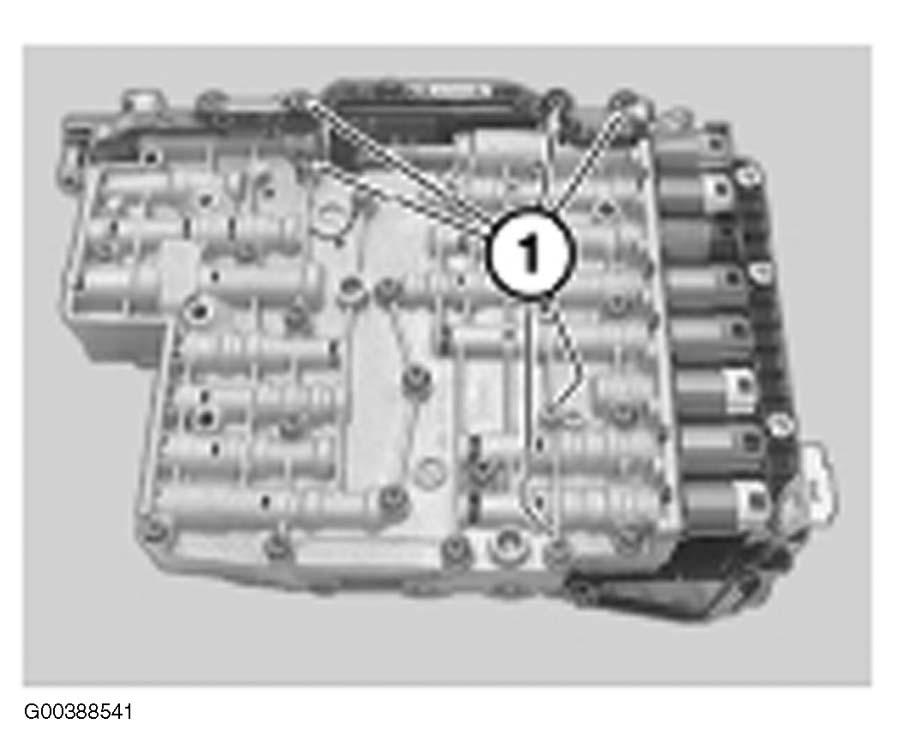

Release screws (1). See Fig 3 . Upon installation, tighten screws to specification. See TORQUE SPECIFICATIONS .

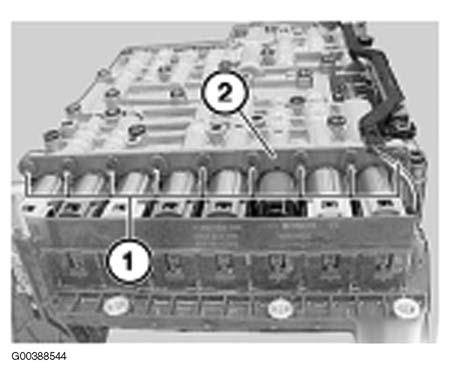

Carefully lift electronics module (1) with a suitable tool and remove in direction of arrow. See Fig 4 .

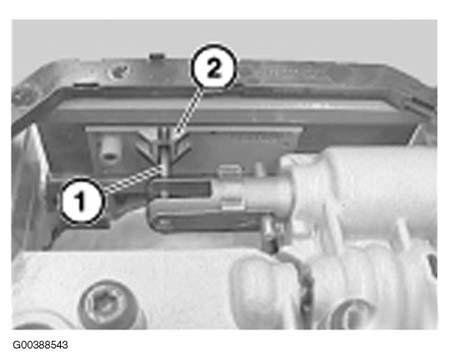

Installation: piston (1) of parking lock cylinder must be attached in slide (2) of selector lever position switch. See Fig 5 .

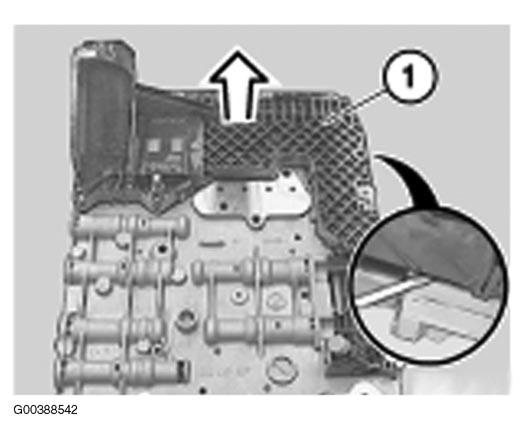

Release screws (1). See Fig 6 . Remove retaining plate (2) for electronic pressure control valves. Upon installation, tighten screws to specification. See TORQUE SPECIFICATIONS .

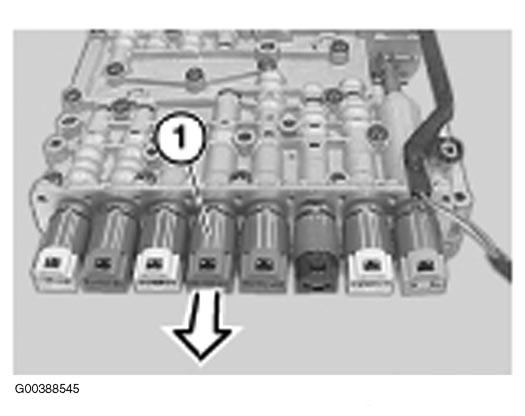

Remove electronic pressure control valve (1) in direction of arrow. See Fig 7 . Note installation position.
