11 4 490 Removal and installation kit

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For removing and installing piston pin circlips.

Engine: M57T2, N43, N45T, N46T, N51, N52, N52K, N53, N54, N62TU

SI number: 1 17 04 (130)

Order number: 11 4 490

Removal and installation kit

Consisting of:

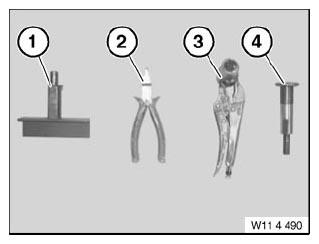

Fig 1: Identifying Removal And Installation Kit (11 4 490)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 11 4 491 Mounting holder

2 = 11 4 492 Removal pliers

3 = 11 4 493 Mounting pliers

4 = 11 4 494 Drift
