66 54 001 Adjusting night vision camera

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2009 BMW 550i, 2008 BMW M5, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mechanical adjustment - as described in the following - is only possible axially .
Vertical adjustment can only be carried out with the BMW diagnosis system:

Service functions
-> Body

-> Night vision

-> Night vision camera

-> Vertical adjustment

Necessary preliminary tasks:

Remove trim grille in bumper trim on left. 51 11 180 REMOVING AND INSTALLING/REPLACING TRIM GRILLE IN BUMPER TRIM (FROM 03/2007) .

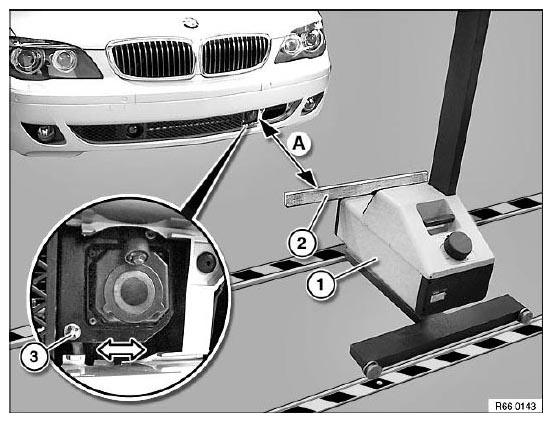

NOTE: Front of car must be parallel at distance (A) to headlight aiming device (1).
A = 1.5 m

Align a suitable straight object (2), e.g. a spirit level, horizontally on headlight aiming device.

Slowly carry out axial adjustment of night vision camera at adjusting screw (3).

Fig 1: Slowly carry out axial adjustment of night vision camera at adjusting screw (3)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows the in-car monitor view.
If necessary, align the picture of the night vision camera with aid of a second person.
Top edge (A) must be aligned parallel to top edge of screen (B).

Fig 2: Top edge (A) must be aligned parallel to top edge of screen (B)

Courtesy of BMW OF NORTH AMERICA, INC.
