65 11 074 Replacing CD-changer trim

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CD CHANGER

Release screw (1) of CD-changer cover (2). Lift off lid (2) and flip upwards in direction of arrow.

Fig 1: Release Screw (1) Of CD-Changer Cover

G00496510

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on the trim (2).

Fig 2: Release Screws (1) On The Trim (2)

G00496511

Courtesy of BMW OF NORTH AMERICA, INC.

Bend the side walls of the CD-changer slightly in the directly of the arrow. Pull out trim (1) in direction of arrow.

Fig 3: Pull Out Trim (1) In Direction Of Arrow

G00496512

Courtesy of BMW OF NORTH AMERICA, INC.

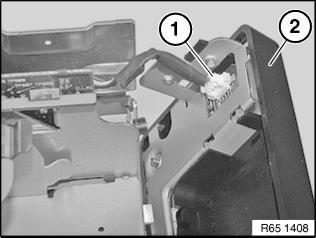

Detach plug (1) from trim (2).

Fig 4: Detach Plug (1) From Trim (2)

G00496513

Courtesy of BMW OF NORTH AMERICA, INC.

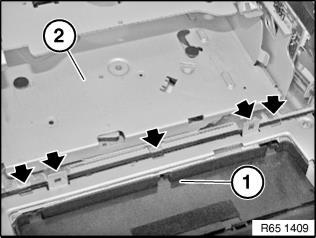

Remove trim (1) from housing (2).

Installation: Position trim (1) on the latch mechanisms of the trim (2).

Fig 5: Remove Trim (1) From Housing (2)

G00496514

Courtesy of BMW OF NORTH AMERICA, INC.
