65 77... Overview of sensors for airbag system (from 09/2005)

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

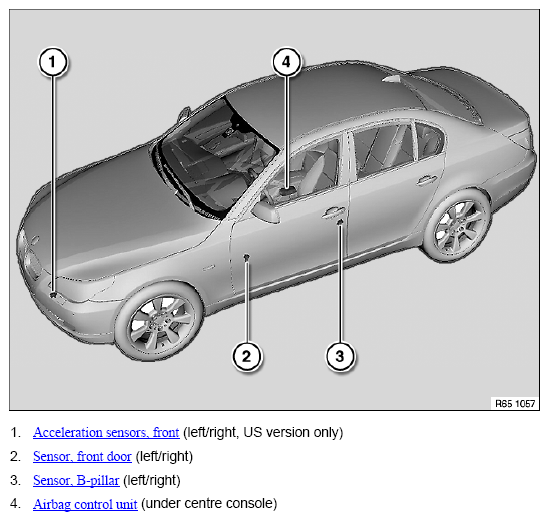

Fig 1: Overview Of Sensors For Airbag System (From 09/2005)
G05514106Courtesy of BMW OF NORTH AMERICA, INC.
