64 11 326 Replacing the button caps of the heating and air conditioning system control panel

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

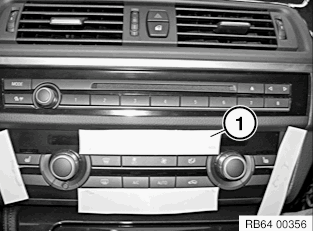

Tape area (1) around the button caps with adhesive tape.

Fig 1: Tape Area Around Button Caps

Courtesy of BMW OF NORTH AMERICA, INC.

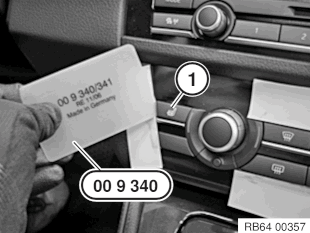

Press blower rocker switch (1) on one side and pry it off on the other side with special tool 00 9 340.

Fig 2: Press Blower Rocker Switch On One Side

Courtesy of BMW OF NORTH AMERICA, INC.

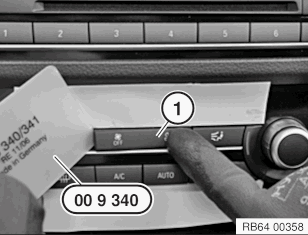

Pry off remaining button caps (1) with special tool 00 9 340.

Fig 3: Pry Off Remaining Button Caps

Courtesy of BMW OF NORTH AMERICA, INC.

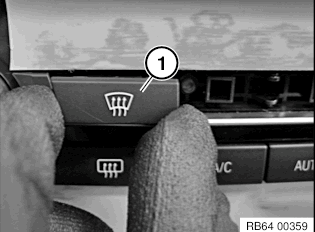

Clip in button caps (1) into operating unit. Remove adhesive tape.

Fig 4: Clip In Button Caps Into Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
