63 10... Adjust the fog lights (with electronic headlight adjustment device MAHA Lite 3)

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Comply with TEST REQUIREMENTS FOR HEADLIGHT ADJUSTMENT .

NOTE: Refer to the equipment manufacturer's operating instructions for the headlight adjustment device!

Switch on the headlight adjustment device by pressing any button.

Press F2 button. The shown display screen appears.

Perform the following settings:

The passenger car must be selected.
Enter the setting dimension for the headlight with buttons F1/F2: - 2, 0 %
The right/left-hand traffic must be selected according to the country.
Select the fog light type with the F3 button:
- EC: for halogen fog lights
- EC LED: for LED fog lights

The adjusted values are adopted for future measurements.

Fig 1: Identifying Lamp Settings Display Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Briefly press the button for the applicable side of the vehicle (1) until symbol (2) appears.

The following symbols appear in the display:

O. K. (4): Adjustment is optimal.
O. K. (3): Adjustment is within the legal tolerance range. ADJUST THE FOG LIGHT until O. K. (4) is displayed.
Arrows (5): Adjustment is incorrect. ADJUST THE FOG LIGHT using arrows (5) until O. K. (4) is displayed.

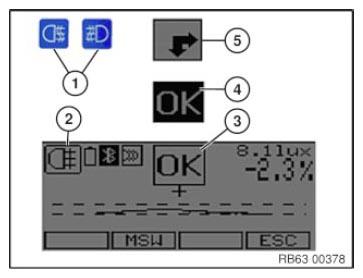

Fig 2: Identifying Adjusted Values Screen Display

Courtesy of BMW OF NORTH AMERICA, INC.
