54 12.. Overview of glass slide/tilt sunroof

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

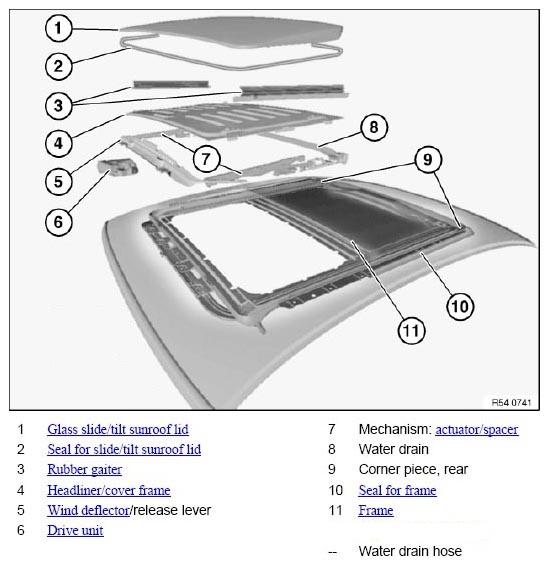

Fig 1: Identifying Glass Slide/Tilt Sunroof Components
G05513312Courtesy of BMW OF NORTH AMERICA, INC.
