52 13 392 Removing and installing/replacing front left or right crash-active headrest (from 09/2007)

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling may result in triggering of the crash-active head restraint and thereby cause injury.

Switch off ignition!

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove REAR PANEL

Unfasten PLUG CONNECTION (1) and disconnect.

Pull out cotter pin (2).

If necessary, cut cable straps.

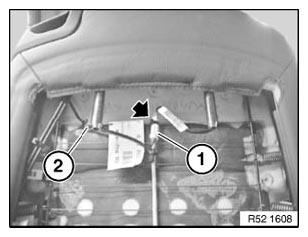

Fig 1: Identifying Plug Connection And Split Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

Fig 2: Lift Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
