52 16 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Move front seat into top position.

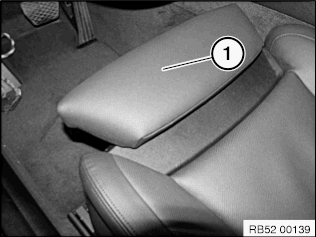

Unclip cover (1) with wedge special tool 00 9 325 starting at the inside (arrow).

Fig 1: Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.

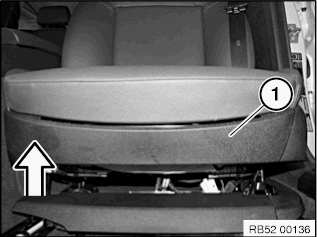

Fold up and unclip cover (1).

Fig 2: Folding Up And Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Move thigh support (1) as far forward as possible.

Fig 3: Identifying Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

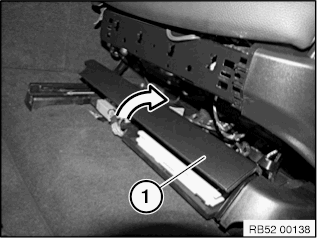

Fold down thigh support and place on front seat.

Installation note:

Insert screws (1) with Loctite.

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 5: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out adjusting unit (2) downward.

Fig 6: Identifying Screws And Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

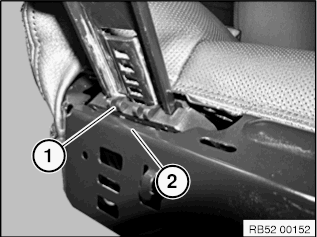

Adjusting unit (1) must lie flush on facing (2).

Fig 7: Identifying Adjusting Unit And Facing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

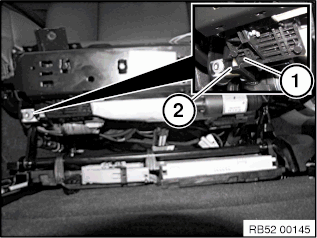

Make sure latch mechanism (1) of adjusting frame is correctly on frame (2) (as illustrated).

Fig 8: Identifying Latch Mechanism And Frame

Courtesy of BMW OF NORTH AMERICA, INC.
