Section 1814 (Seats - Repair)
>>
Front Seat Comfort
>>
52 17... Overview of front seat (comfort)
52 17... Overview of front seat (comfort)
WARNING:
This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

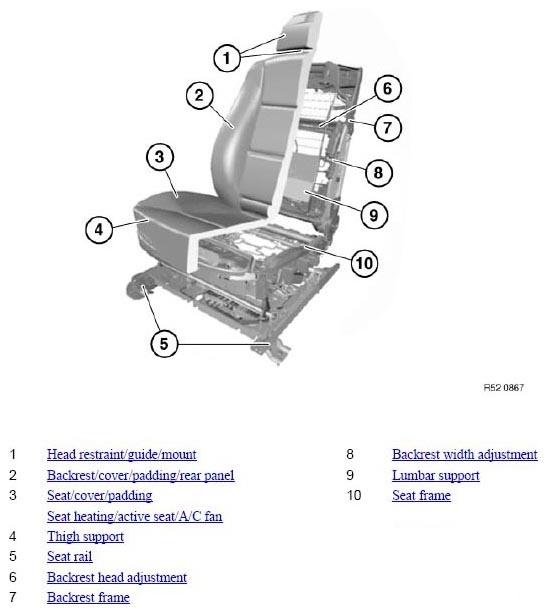

Fig 1: Identifying Front Seat Components
Courtesy of BMW OF NORTH AMERICA, INC.
