51 12 157 Replacing rear bumper trim
WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM

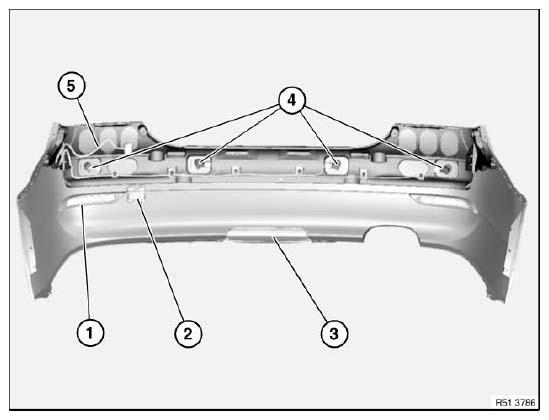

Remove REFLECTOR (1) . (not M5).
Remove cover cap (2) for tow lug.
If necessary, remove flap for towing hitch (3) (not M5).
Version with Park Distance Control:
Remove all ULTRASONIC TRANSDUCERS (4) .
Remove wiring harness (5) for ultrasonic transducers.
