Section 1813 (Body Equipment - Repair)
>>
Front Door Locks Handles/Fittings
>>
51 21... Overview of front door locks
51 21... Overview of front door locks
WARNING:
This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

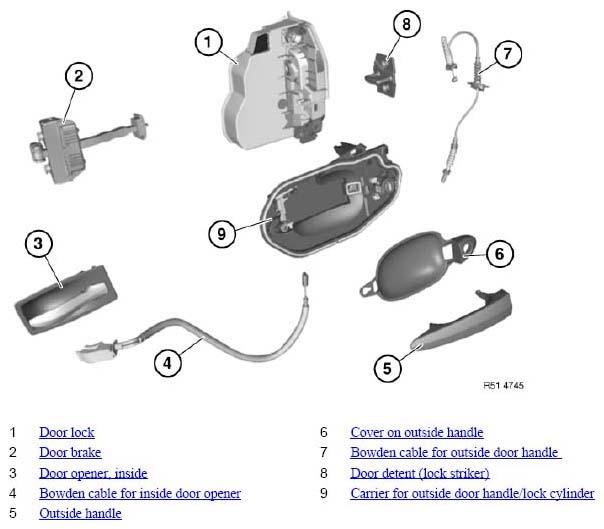

Fig 1: Identifying Front Door Locks Components
Courtesy of BMW OF NORTH AMERICA, INC.
