51 14 110 Removing and installing/replacing rear model designation
WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The INSTRUCTIONS FOR NUMBER/LETTER COMBINATION CEMENTING serve as the basis for these repair instructions and must be followed without fail.

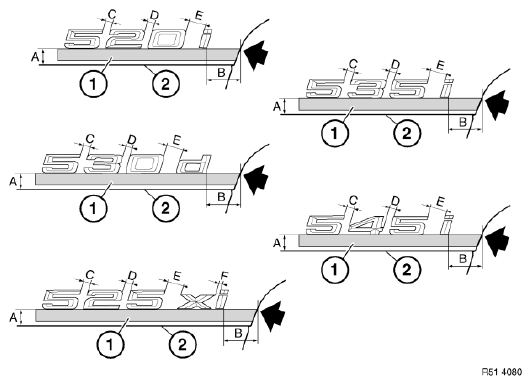

Stick on adhesive tape (1) between edge of rear lid (2) and top edge "A". Mark measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).
Dimensions:
ADHESIVE TAPE DIMENSIONS
| E60 | A = 18 mm | B = 40 mm |
| E61 | A = 17 mm | B = 31.5 mm |
NOTE:
Measurements C, D and E are for information purposes only, as determined by carrier film.
520 i...540 i, 550 i: C = 7 mm, D = 7 mm, E = 20 mm
545 i: C = 4 mm, D = 5 mm, E = 20 mm
520 d...535 d: C = 7 mm, D = 7 mm, E = 20 mm
525 xi...535 xi: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
525 xd...530 xd: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
520 i...540 i, 550 i: C = 7 mm, D = 7 mm, E = 20 mm
545 i: C = 4 mm, D = 5 mm, E = 20 mm
520 d...535 d: C = 7 mm, D = 7 mm, E = 20 mm
525 xi...535 xi: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
525 xd...530 xd: C = 7 mm, D = 7 mm, E = 20 mm, F = 5 mm
NOTE:
Measurement C is for information purposes only, as it is determined by carrier film.
C= 9 mm
Fitting dimensions:
