25 16 056 Removing and installing/replacing shift tower (Steptronic)

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear underbody protection.
Remove center console. See 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .

Move selector lever to park position "P".

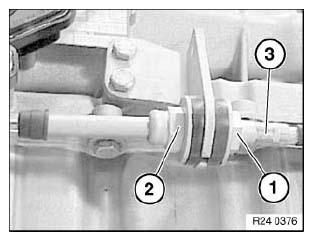

Grip clamping sleeve (1) and slacken nut (2).

Installation:

Adjust selector lever.

Fig 1: Identifying Clamping Sleeve And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E85/E63/E64:

Brace cable on hex head (1) and loosen nut (2).

Tightening torque: 25 16 1AZ. See GEAR SHIFT MECHANISM - TIGHTENING TORQUES .

Pull cable (3) out of bracket.

Fig 2: Identifying Brace Cable Hex Head And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E60/E61/E85 N52:

Detach retainer (3) downwards using a screwdriver.

Fig 3: Identifying Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plugs (1 and 2).

Unscrew bolt (3).

Tightening torque 25 16 5AZ. See GEAR SHIFT MECHANISM - TIGHTENING TORQUES .

Slide interlock cable (4) down using a screwdriver (5) from shaft of interlock locking pawl towards left.

Installation:

Adjust interlock cable and check interlock function.

Fig 4: Sliding Interlock Cable

Courtesy of BMW OF NORTH AMERICA, INC.

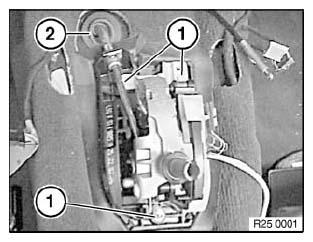

Release screws (1).

Tightening torque: 25 16 3AZ. See GEAR SHIFT MECHANISM - TIGHTENING TORQUES .

Feed sleeve (2) out of body.

Lift shift tower out of center console.

Fig 5: Identifying Centre Console Screws And Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

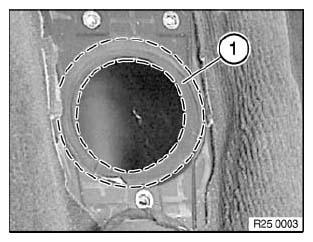

Seal must not be damaged.

Fig 6: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
