17 11 150 Removing and installing/replacing engine oil cooler (N62, N62TU)

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Turn off ignition.
Remove fan cowl .

NOTE: The engine oil cooler is secured to the fan cowl.

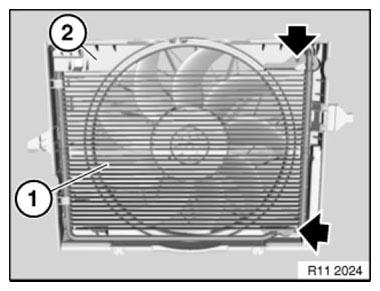

Release screws (see arrows). Release engine oil cooler (1) from fan cowl (2) and remove.

Fig 1: Locating Engine Oil Cooler Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle. Correct engine oil level. If necessary top up engine oil.
