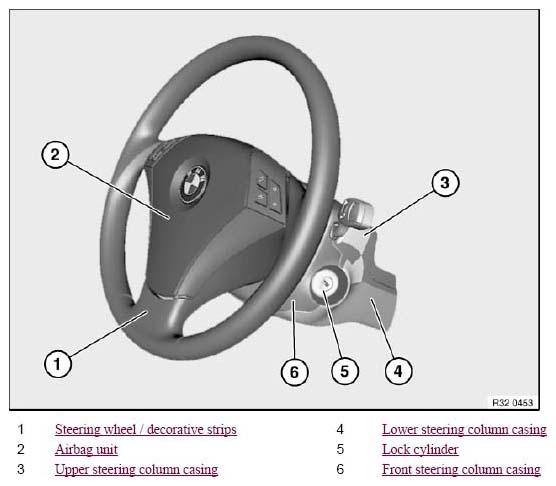

32 .... Overview of steering wheel / casing components / lock cylinder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 528xi, 2009 BMW 535xi, 2009 BMW 528xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
