54 13 100 Removing and installing/replacing water channel

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GLASS SLIDE/TILT SUNROOF COVER AT REAR

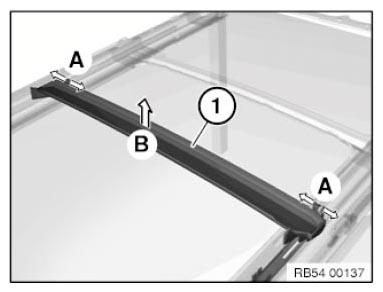

Unclip water channel (1) in direction of arrow (A) and lift off in direction of arrow (B).

Fig 1: Identifying Water Channel

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to water gutter carrier.

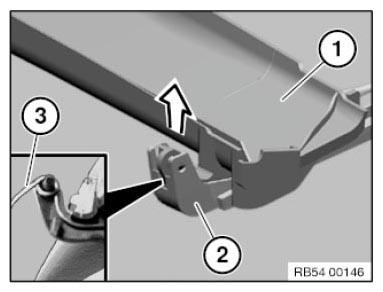

Carefully unclip water gutter (1) upwards out of carrier (2).

Fig 2: Unclipping Water Gutter Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert spring (arrow) onto water channel pivot point.

Make sure spring is correctly positioned in water gutter.

Fig 3: Locating Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

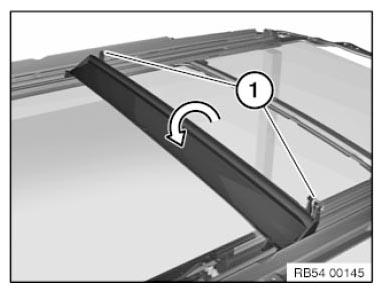

Before clipping in place, fold water channel (1) over in direction of arrow.

Fig 4: Folding Water Channel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe assembly sequence:

Check water gutter for spring tension.

Suspend spring in water gutter carrier
Press water gutter onto glass slide/tilt sunroof
Clip pivot point (bearing) of water gutter into carrier

Fig 5: Pressing Water Gutter Onto Glass Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.
