65 12 072 Removing and installing (replacing) amplifier (Top Hi-Fi system)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Partially remove LUGGAGE COMPARTMENT WHEEL ARCH TRIM ON LEFT

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Unlock plug connections (1) and disconnect.

Pull out retaining plates (2) in direction of arrow.

Installation:

Make retaining plates (2) are correctly seated.

Remove amplifier (3) from holder (4).

Fig 1: Pulling Out Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Until 09/2009 a Top HiFi amplifier with a different pin assignment is installed!

Install cable jumper consisting of socket (1) (BMW Parts Service 6901844) and wire jumper (2) in connector (3).

Create wire jumper (2) from wire (cross-section 0.75 mm) and two stops (BMW Parts Department 1393724). Then connect pins 1 and 2 in the socket (1) with wire jumper (2).

NOTE: Connector chamber (4) is not included in current version and remains unused in new replacement Top HiFi amplifier!

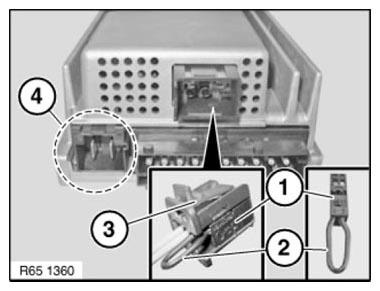

Fig 2: Identifying Wire Jumper, Socket, Connector, And Connector Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out PROGRAMMING/CODING .
