65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

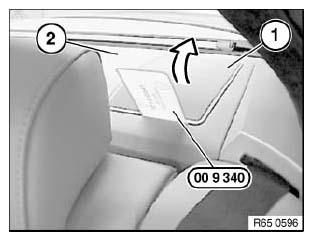

Lever speaker cover (1) with special tool 00 9 341 out of rear shelf (2).

Fig 1: Removing Speaker Cover With Special Tool 00 9 341 Of Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) and locks (2) of speaker cover (3) must not be damaged.

Make sure speaker cover (3) is fully engaged.

Fig 2: Identifying Lugs, Locks And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2) upwards from rear shelf (3).

Disconnect associated plug connection and remove midrange speaker (2).

Fig 3: Removing Mid-Range Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
