65 24 030 Removing and installing/replacing a TV amplifier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
NOTE:

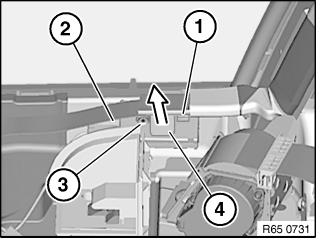

Illustrations show removal of the TV amplifier on the left side. The TV amplifier on the right side is removed in the same way.
Unlock and disconnect plug connection (1) and antenna wire (2).
Release screw (3).
Remove TV amplifier (4) in direction of arrow.
