65 83 020 Removing and installing (replacing) Car Infotainment Computer (CIC)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage! A hard disk is installed in the Car Information Computer (CIC). Carry out mechanical work on the CIC and adjacent components with care. Avoid subjecting the CIC to shaking/shocks.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL WAVEGUIDES .

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
Remove middle trim for instrument panel. See REMOVING AND INSTALLING (REPLACING) CENTRE INSTRUMENT PANEL TRIM (FROM 03/2007) , REMOVING AND INSTALLING (REPLACING) CENTRE INSTRUMENT PANEL TRIM (UP TO 03/2007) , or REMOVING AND INSTALLING/REPLACING CENTRE (BOTTOM) INSTRUMENT PANEL TRIM .

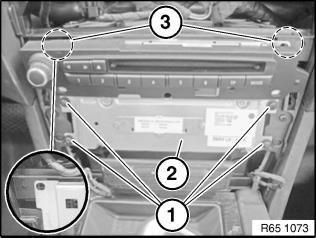

Release screws (1). Pull CIC (2) forwards a little. Installation: Make sure CIC (2) is correctly seated in guide lugs (3).

Fig 1: Release Screws And Pull CIC Forward A Little

Courtesy of BMW OF NORTH AMERICA, INC.

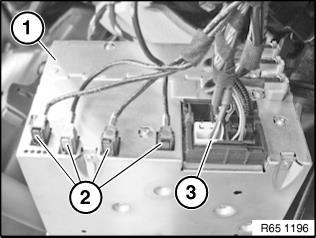

Unlock plug connections (2) and (3) and disconnect. Remove CIC (1).

Fig 2: Unlock Plug Connections And Disconnect

Courtesy of BMW OF NORTH AMERICA, INC.
