64 11 324 Replacing button caps for heater controls (from 03/2007)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Turn temperature selector wheel (1) to stop (arrow).

NOTE: Air volume control (2) has no limit position.
Fig 1: Identifying Temperature Selector And Air Volume Control
G00528583Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the protective cap (1) of the temperature selector wheels and air flow controller with button cap (2) in direction of arrow.

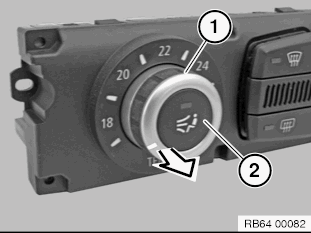

Fig 2: Identifying Temperature Selector Wheel Protective Cap
G00528584Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  Clip protective cap (1) of the left temperature selector wheel in with mark pointing to the left (arrow). Clip the protective cap of the right temperature selector wheel in with mark pointing to the right. Protective caps must audibly snap into place.

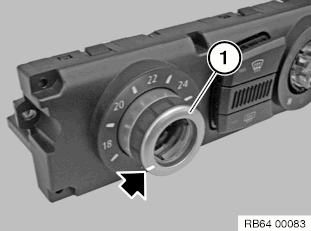

Fig 3: Clipping Protective Cap Of Left Temperature Selector Wheel In With Mark Pointing To Left
G00528585Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  Mark (1) must be aligned with mark (2) of the protective cap of the air flow controller (3). Protective cap must audibly snap into place.

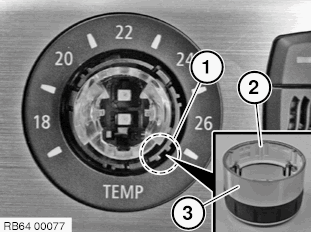

Fig 4: Ensure Protective Cap And Air Flow Marks Are Aligned
G00528586Courtesy of BMW OF NORTH AMERICA, INC.

Set included special tool (2) onto the switch block (1) as shown. Press the special tool to the stop onto the switch block. Carefully pull both switch blocks (1) out with special tool (2).

NOTE: If applicable, the switch springs located behind the switch block will fall out when pulling out the switch block.

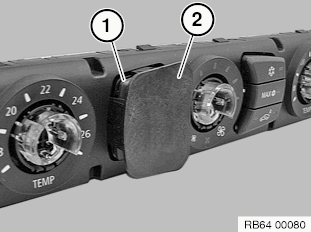

Fig 5: Setting Special Tool Onto Switch Block
G00528587Courtesy of BMW OF NORTH AMERICA, INC.

Carefully insert the switch springs (1) into the inlet (2) of the switch block (3) as shown. Carefully clip switch blocks (3) into the operating unit of the air conditioning.

Installation note:  The repair kit includes 7 switch springs. However, only 5 switch springs will be installed. The switch spring positions may not be changed during installation. Check buttons and switch springs for function.

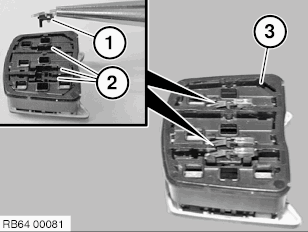

Fig 6: Clipping Switch Blocks Into Operating Unit
G00528588Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  The springs must be inserted in the left switch block as shown.

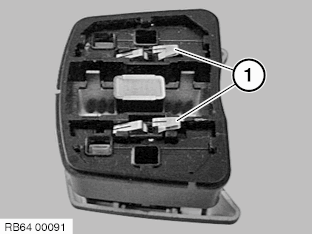

Fig 7: Inserting Springs In Left Switch Block
G00528589Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:  The springs must be inserted in the right switch block as shown.

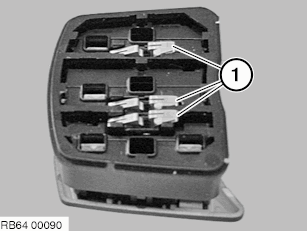

Fig 8: Inserting Springs In Right Switch Block
G00528590Courtesy of BMW OF NORTH AMERICA, INC.
