Initialization process
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2010 BMW M5, 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW M5, and 2009 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

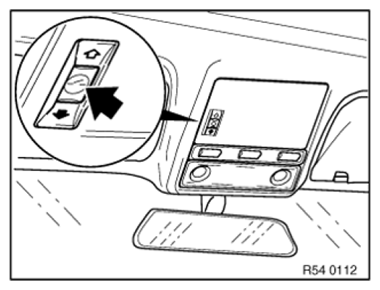

- Move switch in "Lift" direction and hold (roof system moves to "Lift" position)
- In the event of delayed starting or sudden stopping of the glass sunroof, continue pressing the switch in the "Lift" direction
NOTE:
Hold switch depressed for entire process.

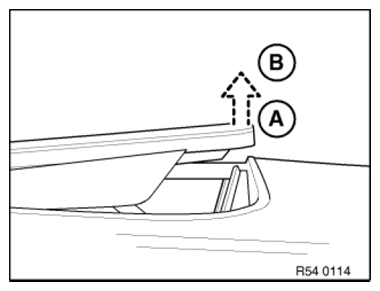

- After reaching the fully raised position (A), keep the switch pressed for approx. 30 seconds further (initialization process starts)
- Glass sunroof moves briefly from lift end position (A) in direction of position (B)
- Shading system (floating headlining) closes completely
- Shading system (floating headlining) opens completely
- Glass sunroof moves to "Closed" position
- Glass sunroof then moves to "Open" end position and immediately back to "Closed" position
- After a brief pause, shading system closes completely
NOTE:
Once glass roof and shading system have closed completely, initialization is finished. Switch can be released.
NOTE:
- If the switch is released in the meantime, the entire procedure must be repeated
- On completion of successful initialization, the corresponding messages in the check control and the control display go out
- Carry out function check (tip function, anti-trapping protection and, if necessary, comfort function)
