51 14 000 Removing and installing/replacing front BMW badge
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Risk of damage!

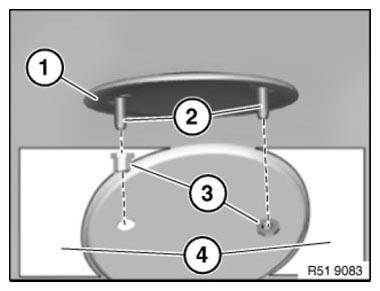

To avoid damaging the paintwork on the engine compartment lid, tape off edge areas (1) to sides of guide pins.
So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 318 at guide pins (2).
Installation:
Following parts must not be damaged or missing:
- Badge
- Guide pins
- Grommets
