36 11 105 Removing and installing RDC (Tire Pressure Control) control unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
NOTE:

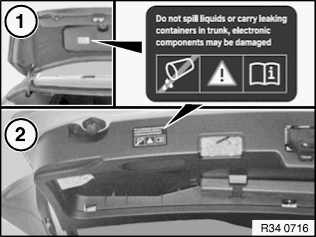

When replacing the control unit, also attach the warning notice to the rear lid (1) E60 and (2) E61 or check that one is present.
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM
- If necessary, remove spare wheel
- Remove luggage compartment recess panel
Take off cover for control units (1).
Installation:
Make sure cover for control units (1) is correctly seated on locating pins (2).
Remove RDC control unit (1) from device holder.
Disconnect plug connection (2).
Replacement:
- Carry out PROGRAMMING/CODING
