34 21... Overview of rear brake

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

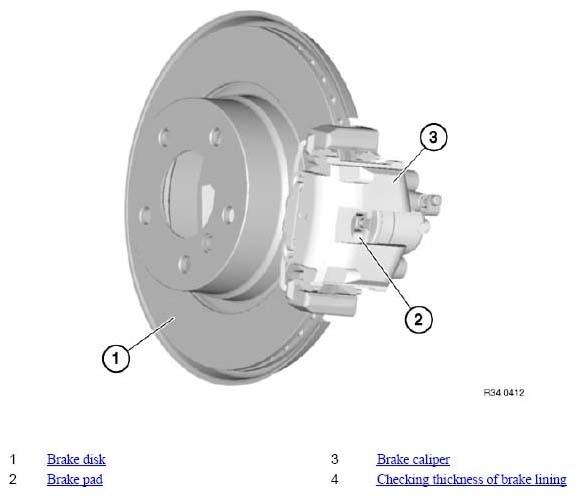

Fig 1: Overview Of Rear Brake
G05502952Courtesy of BMW OF NORTH AMERICA, INC.
