33 11 271 Replacing cover gasket on rear differential (235L)
WARNING: This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
In event of oil loss, always check rear differential for traces of wear and damage. To avoid leaks from the rear differential cover, do not use a paper gasket in cars with liquid sealing compounds! To prevent the differential oil from foaming over, make sure that no traces of the liquid gasket are pressed into the housing.
Necessary preliminary tasks:
- Drain and catch rear differential oil
- Remove rear axle final drive

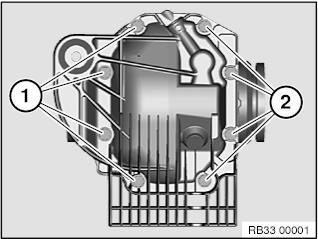

Release screw (1). Tightening torque (M10x50) 33 11 1AZ, see 33 11 REAR DIFFERENTIAL CASE WITH COVER . Unfasten screws (2). Tightening torque (M10x25) 33 11 1AZ, see 33 11 REAR DIFFERENTIAL CASE WITH COVER . Remove cover. If necessary, remove remnants of liquid sealing compound with scraper. Clean sealing face on cover and rear differential.
Installation note: If a paper gasket was fitted, a paper gasket or liquid sealing compound can be used.
After installation: Add rear differential oil
