52 13 392 Removing and installing/replacing front left or right crash-active headrest (from 09/2007)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read and comply with SAFETY REGULATIONS
for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling may result in triggering of the crashactive head restraint and thereby cause injury.
Incorrect handling may result in triggering of the crashactive head restraint and thereby cause injury.
Switch off ignition!
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD
- Remove REAR PANEL
Unlock PLUG CONNECTION (1) and disconnect.
Pull out cotter pin (2).
If necessary, cut cable straps.

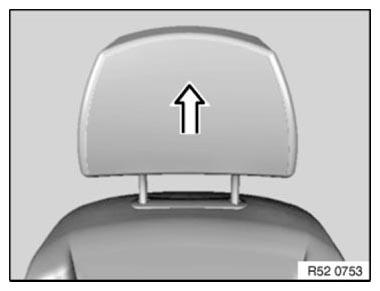

Lift out head restraint.
