52 17... Replacing padding for front seat thigh support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

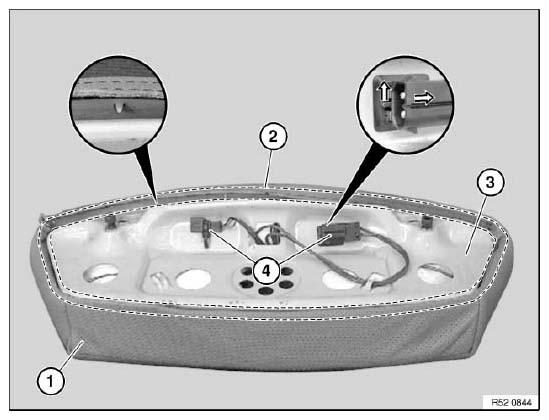

Fig 1: Identifying Front Seat Thigh Support Components

Courtesy of BMW OF NORTH AMERICA, INC.

The work operations here are shown on the version with air conditioning and seat heating.

Feed out seat cover (1) in area (2).

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

Version with seat heating or air conditioning:

Feed out cable (1) and remove padding (2).

Installation:

Ensure correct cable routing (1).

Fig 2: Identifying Padding And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Version with air conditioning:

Remove separating net (1).
Lift out fan (2).

Fig 3: Identifying Fan And Separating Net
Courtesy of BMW OF NORTH AMERICA, INC.
