Section 1728 (Front Axle - Repair)
>>
General
>>
31.... Layout of spring strut shock absorber
31.... Layout of spring strut shock absorber
WARNING:
This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

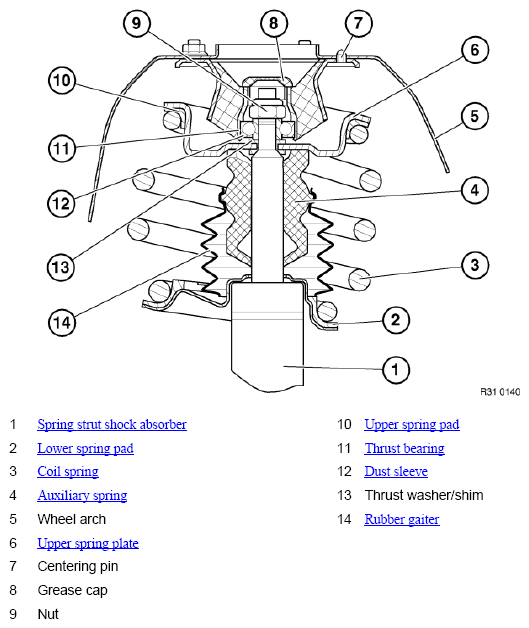

Fig 1: Layout Of Spring Strut Shock Absorber
Courtesy of BMW OF NORTH AMERICA, INC.
