26 20 000 Removing and installing front propeller shaft

WARNING: This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not move vehicle with drive power once propeller shaft has been removed.

IMPORTANT: Replacement only: according to installation with BMW diagnosis and information system under control unit function Perform functional check of transfer box (calibration)

Necessary preliminary tasks:

Remove underbody protection

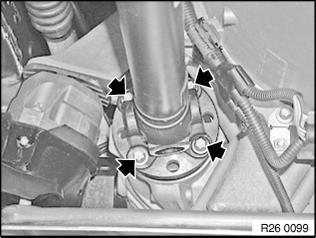

Release screws. Installation: Replace screws. Tightening torque, 26 11 9AZ, see 26 11 PROPELLER SHAFT COMPLETE .

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

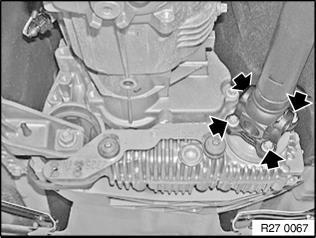

Release screws. Remove propeller shaft. Installation: Replace screws. Tightening torque, 26 11 9AZ, see 26 11 PROPELLER SHAFT COMPLETE .

Fig 2: Release Screws And Remove Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
