24 00 050 Installing replacement transmission (GA6HP19Z/N52/N52K/N53/N54)

WARNING: This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

Drain automatic transmission fluid at oil drain plug.

Tightening torque: 24 11 6AZ .

IMPORTANT: After completion of work, program transmission control unit.

Recycling:

Catch and dispose of escaping transmission fluid.

Observe country-specific waste-disposal regulations

IMPORTANT:

Before installing replacement transmission, always flush TRANSMISSION FLUID COOLER TOGETHER WITH LINES .
After completion of work, check TRANSMISSION FLUID LEVEL .

Replacement transmission is supplied filled with transmission fluid.
Use only the approved TRANSMISSION FLUID .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION .

NOTE: Rear-wheel drive only

Release screws.

Remove and convert transmission bearing block (1).

Tightening torque 24 71 6AZ .

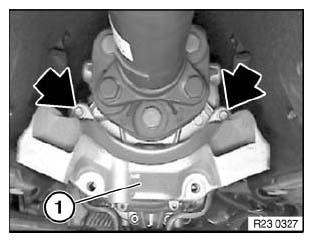

Fig 1: Locating Transmission Bearing Block Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: AWD

Modify transfer case.

Picture show E60 (not N54).

Release screws.

Remove and modify exhaust system bracket (1).

Fig 2: Identifying Exhaust System Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Convert transportation lock (1).

Convert all cable holders.

Convert all seal plugs.

Convert protective cap on output shaft.

IMPORTANT: After removing transportation lock, secure torque converter against slipping out.

Fig 3: Identifying Transportation Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission identification:

On type plate
