24 14 002 Replacing shaft seal for selector shaft (GA6HP19Z)

WARNING: This page is about a different car, the 2010 BMW 535i, 2009 BMW 535i, and 2008 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of work, check TRANSMISSION FLUID LEVEL .
Use only the approved TRANSMISSION FLUID .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Release screws and remove transmission underbody protection (1) (E65 only).
Remove rear underbody protection (E60/E61 only).

Fig 1: Identifying Transmission Underbody Protection
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 1:
Unfasten nut.
Remove cable (1).

Installation:

Adjusting cable:

Unfasten nut.
Adjust cable via holder (2).
Distance A = 1 mm.

Fig 2: Identifying Cable And Holder
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 2:
Grip clamping sleeve (1) and slacken nut (2).
Detach retainer (3) towards bottom using a screwdriver.
Pull cable (4) out of holder.

Installation:

Adjust selector lever.

Fig 3: Identifying Clamping Sleeve And Slacken Nut With Retainer

G04726075

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Version 3:
Release shift cable head (2) from ball head.

Installation:

Adjust selector lever

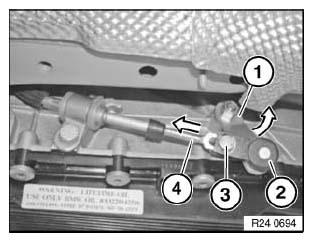

Fig 4: Identifying Shift Cable Head From Ball Head

G04726124

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Take off holder (1).

Tightening torque 24 51 1AZ .

NOTE: Illustration shows E65.

Fig 5: Identifying Holder And Screw

G04755670

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 5 361 until it is firmly connected with shaft seal.

Fig 6: Identifying Special Tools (24 5 361)

G04726125

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.

This pulls the shaft seal out of the transmission housing.

Fig 7: Identifying Special Tools (24 5 361) And (24 5 362)

G04726126

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal (1).

Screw in shaft seal (1) with special tools 24 5 366 and 24 5 364 as far as it will go.

Fig 8: Identifying Oil Sealing Lip On Shaft Seal

G04726127
