21 52 500 Removing and installing/replacing clutch master cylinder

Necessary preliminary tasks:

• Remove trim panel  for pedal assembly. See REMOVING AND INSTALLING/REPLACING PANEL FOR PEDALS
• Remove microfilter housing  on left. See REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION
• Remove light module  . See REMOVING AND INSTALLING (REPLACING) LIGHT MODULE

Draw off brake fluid up to supply hose of clutch hydraulic system (1). For this purpose, use only a vacuum pipe that is exclusively used for removing brake fluid.

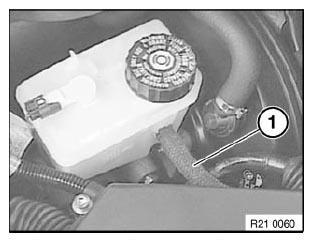

Detach supply hose (1) from expansion tank.

Fig 1: Identifying Supply Hose Of Clutch Hydraulic System

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect spring (1).

Fig 2: Identifying Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retainer (1) using screwdriver and press out pin.

Fig 3: Removing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

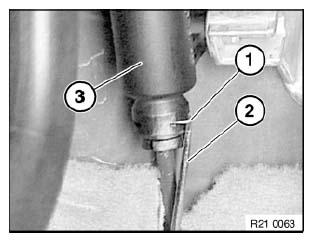

Detach retainer (1) with a screwdriver (2).

Detach hydraulic line from clutch master cylinder.

Fig 4: Identifying Retainer With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock (1) from pin with aid of screwdriver (2).

Lever out pin (3) with aid of screwdriver.

Remove clutch master cylinder.

Installation:

Replace pin.

Press in pin until lock (1) can be seen to snap into place.

Fig 5: Levering Out Pin

Courtesy of BMW OF NORTH AMERICA, INC.

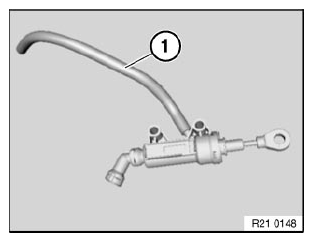

Detach supply hose (1) from clutch master cylinder.

Fig 6: Identifying Supply Hose From Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out shift element (1) from clutch master cylinder (2) with screwdriver.

Release plug connection (3) and disconnect plug (4) from shift element (1).

Fig 7: Identifying Shift Element From Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Shift element is secured against incorrect installation.

Shift element must snap audibly into place.
