11 65 Connection Diagram, Vacuum Activation (N54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

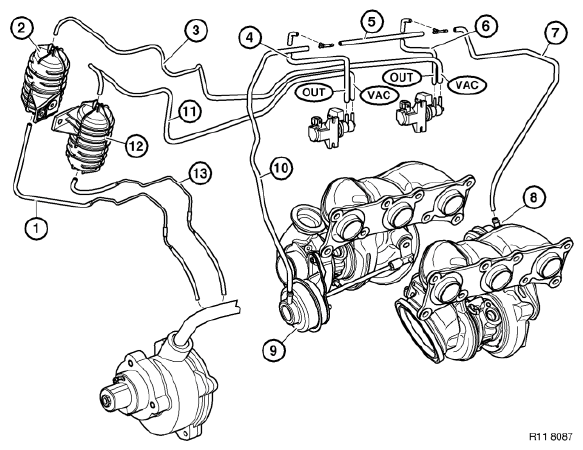

Fig 1: Vacuum Hose Connection Diagram
G06174879Courtesy of BMW OF NORTH AMERICA, INC.
  1. Vacuum hose connection vacuum pump to vacuum accumulator cylinders 4 to 6.
  2. Vacuum accumulator, cylinders 4 to 6.
  3. Vacuum hose connection VAC on EPPC (electropneumatic pressure converter) cylinders 4 to 6 to vacuum accumulator.
  4. Vacuum hose connection OUT on EPPC (electropneumatic pressure converter) cylinders 1 to 3 to T-piece.
  5. Vent line between connecting line 4 and 6 of wastegate units.
  6. Vacuum hose connection OUT on EPPC (electropneumatic pressure converter) cylinders 4 to 6 to T-piece.
  7. Vacuum line branch T-piece to vacuum unit (wastegate valve) cylinders 4 to 6.
  8. Connection vacuum unit (wastegate valve) cylinders 4 to 6.
  9. Connection vacuum unit (wastegate valve) cylinders 1 to 3.
  10. Vacuum line branch T-piece to vacuum unit (wastegate valve) cylinders 1 to 3.
  11. Vacuum hose connection VAC on EPPC (electropneumatic pressure converter) cylinders 1 to 3 to vacuum accumulator.
  12. Vacuum accumulator cylinders 1 to 3.
  13. Vacuum hose connection vacuum pump to vacuum accumulator cylinders 1 to 3.
